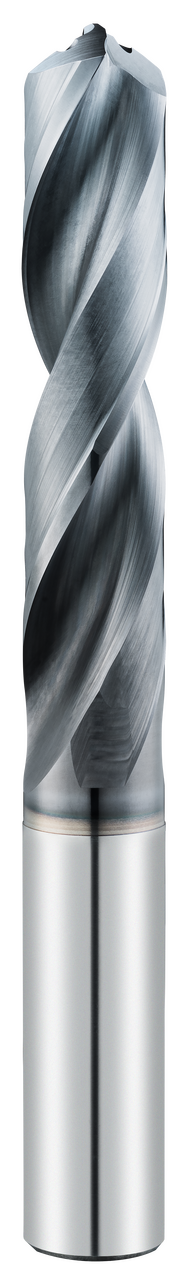

SGS Letter U, 135 Degree Point, Solid Carbide Drill - 56456

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-56456
$417.67
SGS Letter U, 135 Degree Point, 0.3937" Shank Dia, 4.0551" OAL, 2 Flute, 5xD, Coolant-Through, Ti-NAMITE-X (TX) Coated, Series 142P, Hi-PerCarb 142P, Solid Carbide Drill - 56456

Specifications

Series
142P
Unit of Measure
Imperial
Diameter
0.37 Inch
Shank Size
0.40 Inch
Overall Length
4.06 Inch
Cutting Direction
Right
Material
Solid Carbide
Cutting Diameter (Metric)
9.35
Shank Diameter (Metric)
10
Overall Length (Metric)
103
Flute Type
Spiral
Helix Angle
30 degrees
Primary Workpiece Material
"(P) Steel, (N) Non-Ferrous Materials, (H) Hardened Materials"
Secondary Workpiece Material
(M) Stainless Steel|(K) Cast Iron|(S) High Temp Alloy
Cutting Diameter Tolerance (Decimal)
+.00024 / +.00083
Cutting Diameter Tolerance (Metric)
+.0061 / +.0211
Shank Diameter Tolerance (ISO)
h6
Coolant Option
Internal Coolant
Coating Description
Ti-NAMITE-X (TX)
Additional Geometry
Right Hand Cut Direction (RHC)
High Performance
Yes
Weldon Flat
No
Variable Helix
No
Center Cutting
No
Chip Breaker
No
Point Angle
135 degrees
Flute Length (Metric)
61
DIN Standard
DIN 6537
Number of Margins
4
Flute Length
2.41 Inch
Cutting Diameter (Letter)
U
Usable Length (Decimal)
1.93
Usable Length (Metric)
49
Point Length (Decimal)
0.08
Point Length (Metric)
1.94
Self Centering
Yes
Length Of Cut
5 x D
SGS Letter U, 135 Degree Point, Solid Carbide Drill - 56456
$417.67
