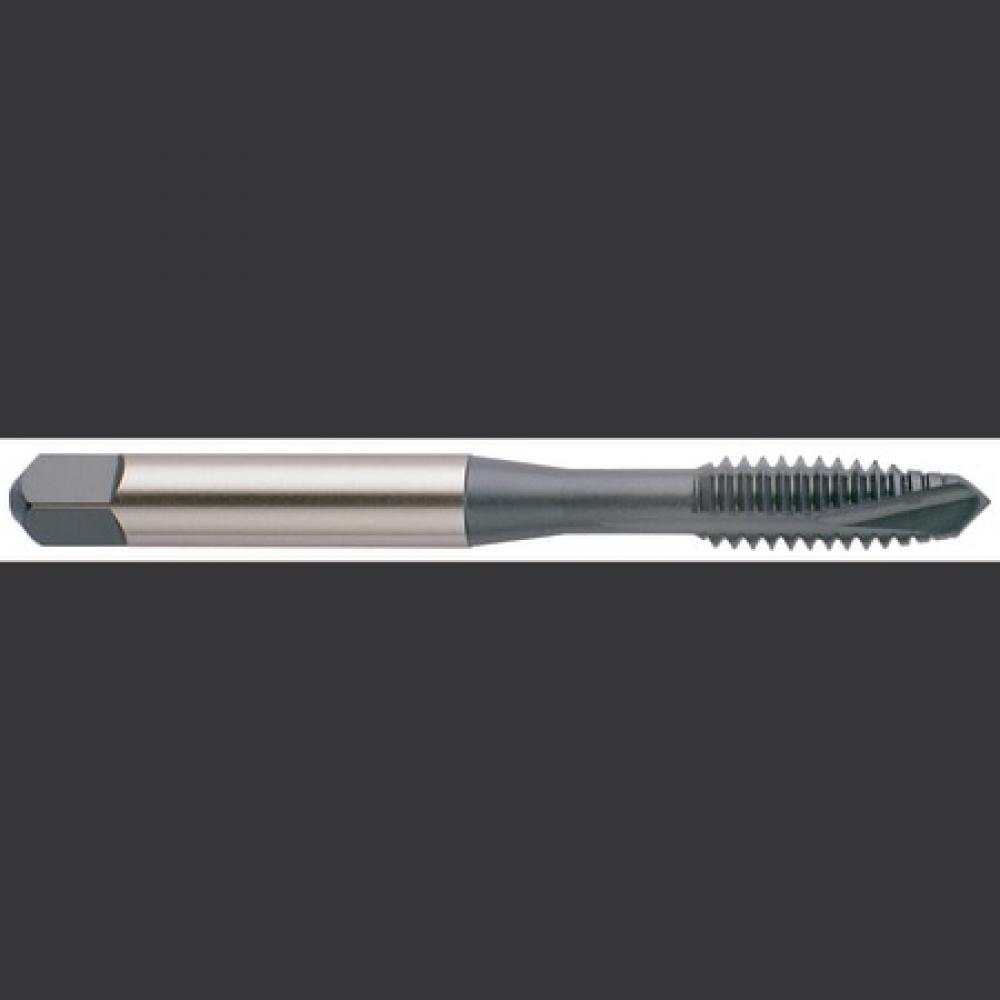

YG-1 Spiral Point Tap: 7/16-14, H5, TiN, TTS66525

YG-1

No reviews yet Write a Review
SKU:
YG1-TTS66525
$54.51

YG-1 spiral point tap for steel, stainless steel, cast iron and non-ferrous metals, square shank. TiN coating. Manufacturer part number TTS66525.

Specifications

Unit of Measure
Inch
Shank Type
Square
Coating/Finish
TiN
Shank Diameter (Decimal)
0.3230
Shank Diameter (Metric)
8.20
Overall Length (Decimal)
3.1600
Overall Length (Metric)
80.26
Neck Length (Decimal)
1.8500
Neck Length (Metric)
46.99
Thread Standard
UNC
Thread Size
7/16-14
LxD Ratio
3xD
Thread Limit
H5
Thread Pitch (TPI)
14
Chamfer Length
4P-5P
Workpiece Material
Steel, Stainless Steel, Cast Iron, Non-Ferrous
Drill Size (Metric)
9.46
Square Length (Decimal)
0.4100
Square Length (Metric)
10.41
Square Size (Decimal)
0.2420
Square Size (Metric)
6.15
Thread Length (Metric)
18.14
Usable Length (Decimal)
1.8500
Usable Length (Metric)
46.99
YG-1 Spiral Point Tap: 7/16-14, H5, TiN, TTS66525
$54.51
