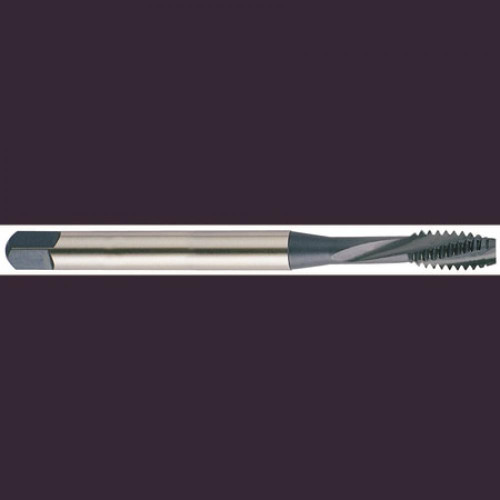

1/4-20 2FL MACHINING CENTER ASP23 TIN COATED TAP

YG-1

No reviews yet Write a Review
SKU:
YG1-H2403
$57.92

Specifications

Unit of Measure
Inch
Workpiece Material
Steel, Stainless Steel
Number of Flutes
2
Shank Type
Square
Overall Length (Fractional)
6
Coating/Finish
TiN
Shank Diameter (Decimal)
0.2550
Shank Diameter (Metric)
6.48
Overall Length (Metric)
152.40
Helix Angle
15 degrees
Thread Standard
UNC
Thread Size
1/4-20
LxD Ratio
3xD
Thread Limit
H3
Thread Pitch (TPI)
20
Chamfer Length
4P-5P
Secondary Workpiece Material
Non-Ferrous
Square Length (Decimal)
0.3100
Square Length (Metric)
7.87
Square Size (Decimal)
0.1910
Square Size (Metric)
4.85
Thread Length (Decimal)
0.5910
Thread Length (Metric)
15.01
Usable Length (Decimal)
1.4960
Usable Length (Metric)
38.00
1/4-20 2FL MACHINING CENTER ASP23 TIN COATED TAP
$57.92
