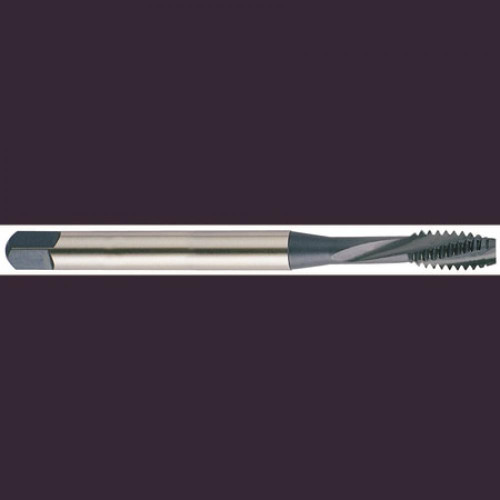

5/16-18 3FL MACHINING CENTER ASP23 TIN COATED TAP

YG-1

No reviews yet Write a Review
SKU:
YG1-H2443
$65.56

Specifications

Unit of Measure
Imperial
Diameter
0.32 Inch
Number Of Flutes
3
Shank Type
Square
Overall Length
6 Inch
Cutting Direction
Left
Coating/Finish
TiN
Shank Diameter (Decimal)
0.32
Shank Diameter (Metric)
8.08
Overall Length (Metric)
152.40
Helix Angle
15 degrees
Neck Diameter (Decimal)
0.24
Neck Diameter (Metric)
5.94
Through Coolant
No
Diameter (Metric)
7.94
Thread Standard
UNC
Thread Size
5/16
Depth Of Cut
3 x D
Thread Limit
H3
Chamfer
Plug
Thread Pitch
18
Blank Standard
302A
Chamfer Length
4P-5P
Connection (Decimal)
0.32 x 0.24
Connection (Metric)
8.08 x 6.05
Drill Size (Decimal)
0.27
Drill Size (Metric)
6.65
Square Length (Decimal)
0.38
Square Length (Metric)
9.65
Square Size (Decimal)
0.24
Square Size 2 (Decimal)
0.38
Square Size (Metric)
6.05
Square Size 2 (Metric)
9.65
Thread Length (Decimal)
0.48
Thread Length (Metric)
11.99
Useable Length (Decimal)
1.13
Useable Length (Metric)
28.60
5/16-18 3FL MACHINING CENTER ASP23 TIN COATED TAP
$65.56
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
