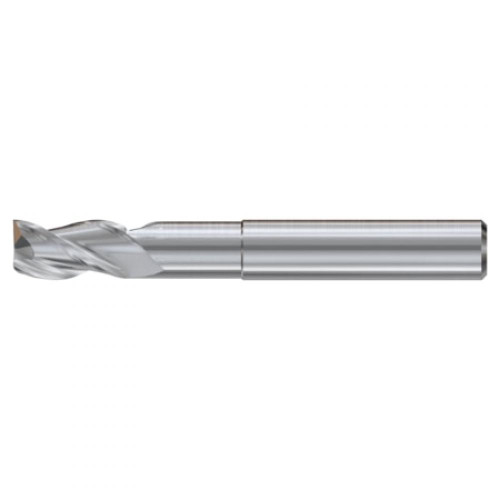

YG-1 Square End Mill: 1/4" Dia, 3/8" LOC, 3" OAL, 1-1/8" Reach, 3 Flute, JAG96901

YG-1

No reviews yet Write a Review
SKU:
YG1-JAG96901
$66.52

YG-1 square end mill for non-ferrous metals, 3 flutes, 37 degree helix, center cutting. Manufacturer part number JAG96901.

Specifications

Unit of Measure
Inch
Cutting Diameter (Fractional)
1/4
Length of Cut (Fractional)
3/8
Shank Diameter (Fractional)
1/4
Number of Flutes
3
Reach (Fractional)
1-1/8
Overall Length (Fractional)
3
Reach (Decimal)
1.1250
Reach (Metric)
28.58
Length of Cut (Decimal)
0.3750
Length of Cut (Metric)
9.53
Shank Diameter (Decimal)
0.2500
Shank Diameter (Metric)
6.35
Overall Length (Decimal)
3.0000
Overall Length (Metric)
76.20
Helix Angle
37 degrees
Cutting Diameter (Decimal)
0.2500
Cutting Diameter (Metric)
6.35
Workpiece Material
Non-Ferrous
Size System
Fractional
Center Cutting
Yes
YG-1 Square End Mill: 1/4" Dia, 3/8" LOC, 3" OAL, 1-1/8" Reach, 3 Flute, JAG96901
$66.52
