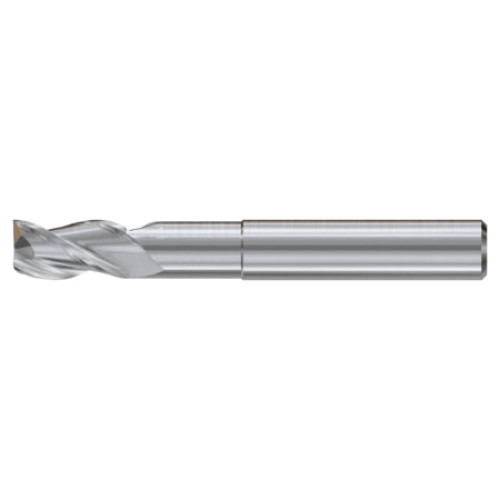

YG-1 Square End Mill: 1" Dia, 1-1/4" LOC, 7" OAL, 4-3/8" Reach, 3 Flute, JAG96910

YG-1

No reviews yet Write a Review
SKU:
YG1-JAG96910
$1,016.75

YG-1 square end mill for non-ferrous metals, 3 flutes, 37 degree helix, center cutting. Manufacturer part number JAG96910.

Specifications

Unit of Measure
Inch
Cutting Diameter (Fractional)
1
Length of Cut (Fractional)
1-1/4
Shank Diameter (Fractional)
1
Number of Flutes
3
Reach (Fractional)
4-3/8
Overall Length (Fractional)
7
Reach (Decimal)
4.3750
Reach (Metric)
111.13
Length of Cut (Decimal)
1.2500
Length of Cut (Metric)
31.75
Shank Diameter (Decimal)
1.0000
Shank Diameter (Metric)
25.40
Overall Length (Decimal)
7.0000
Overall Length (Metric)
177.80
Helix Angle
37 degrees
Cutting Diameter (Decimal)
1.0000
Cutting Diameter (Metric)
25.40
Workpiece Material
Non-Ferrous
Size System
Fractional
Center Cutting
Yes
YG-1 Square End Mill: 1" Dia, 1-1/4" LOC, 7" OAL, 4-3/8" Reach, 3 Flute, JAG96910
$1,016.75
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
