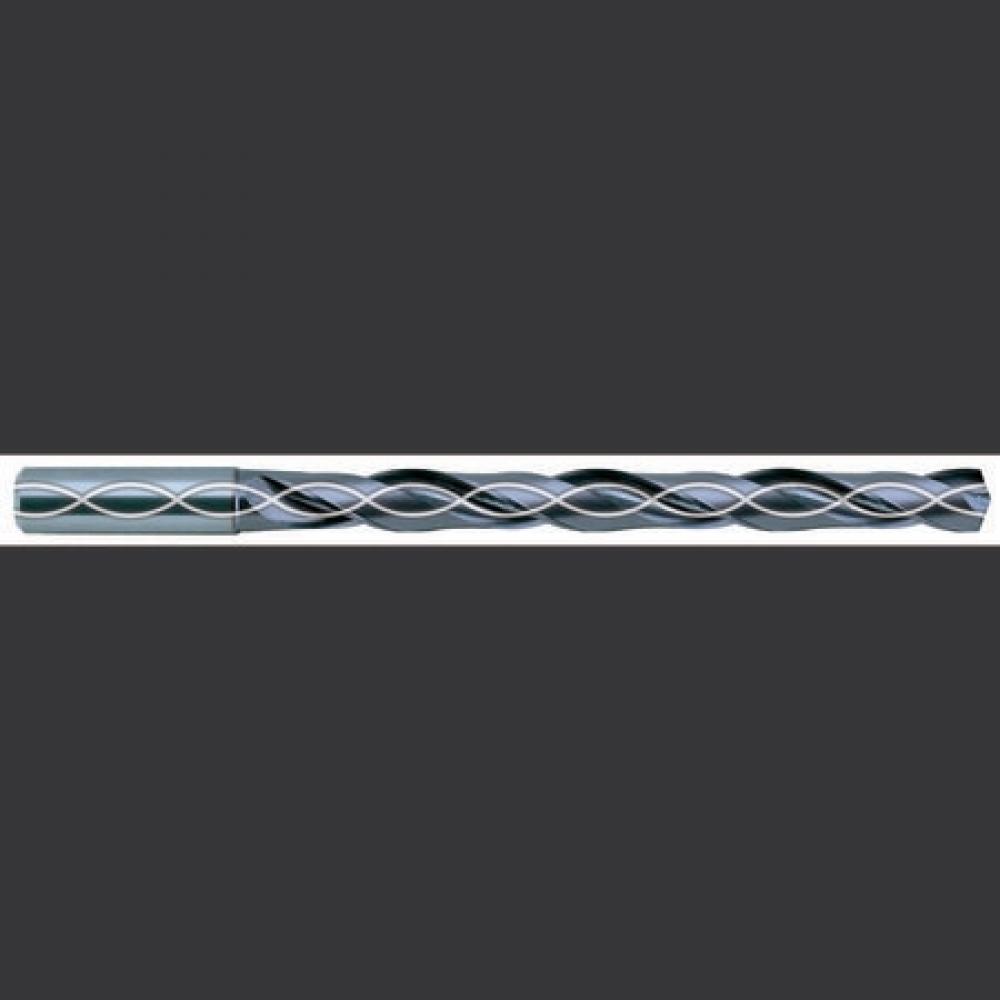

YG-1 Extra Length Drill: 13.60mm Dia, 133.00mm Flute Length, 178.00mm OAL, 140° Point, 8xD, Internal Coolant, Solid Carbide, DH453136

YG-1

No reviews yet Write a Review
SKU:
YG1-DH453136
$667.59

YG-1 extra length drill for steel, stainless steel and non-ferrous metals, 140 degree point, internal coolant. Solid carbide, TiAlN coating. Manufacturer part number DH453136.

Specifications

Unit of Measure
Metric
Cutting Diameter (Metric)
13.60
Shank Diameter (Metric)
14.00
Overall Length (Metric)
178.00
Material
Solid Carbide
Shank Diameter (Decimal)
0.5512
Coating/Finish
TiAlN
Overall Length (Decimal)
7.0079
Secondary Workpiece Material
High-Temp Alloy
Type
Dream Drill INOX
Point Angle
140 degrees
Flute Length (Decimal)
5.2362
Cutting Diameter Tolerance
m7
Flute Length (Metric)
133.00
Size System
Metric
Cutting Diameter (Decimal)
0.5354
Coolant Option
Internal Coolant
Workpiece Material
Steel, Stainless Steel, Non-Ferrous
LxD Ratio
8xD
Shank Tolerance
h6
Blank Standard
DIN 6537
