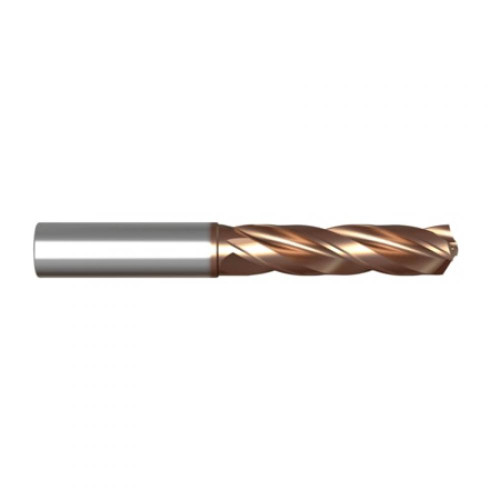

YG-1 Stub Drill: 25/64" Dia, 1.8504" Flute Length, 3.5039" OAL, 140° Point, 3xD, Internal Coolant, Solid Carbide, DGR496025

YG-1

No reviews yet Write a Review
SKU:
YG1-DGR496025
$376.92

YG-1 stub drill for steel and cast iron, 140 degree point, internal coolant. Solid carbide, H-Coating. Manufacturer part number DGR496025.

Specifications

Unit of Measure
Inch
Cutting Diameter (Metric)
9.92
Shank Diameter (Metric)
11.11
Overall Length (Metric)
89.00
Material
Solid Carbide
Shank Diameter (Decimal)
0.4375
Shank Diameter (Fractional)
7/16
Overall Length (Decimal)
3.5039
Coating/Finish
H-Coating
Type
High Feed
Point Angle
140 degrees
Flute Length (Decimal)
1.8504
LxD Ratio
3xD
Flute Length (Metric)
47.00
Size System
Fractional
Cutting Diameter (Decimal)
0.3906
Coolant Option
Internal Coolant
Workpiece Material
Steel, Cast Iron
Cutting Diameter (Fractional)
25/64
Cutting Diameter Tolerance
m7
Shank Tolerance
h6
Blank Standard
DIN 6537
YG-1 Stub Drill: 25/64" Dia, 1.8504" Flute Length, 3.5039" OAL, 140° Point, 3xD, Internal Coolant, Solid Carbide, DGR496025
$376.92
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
