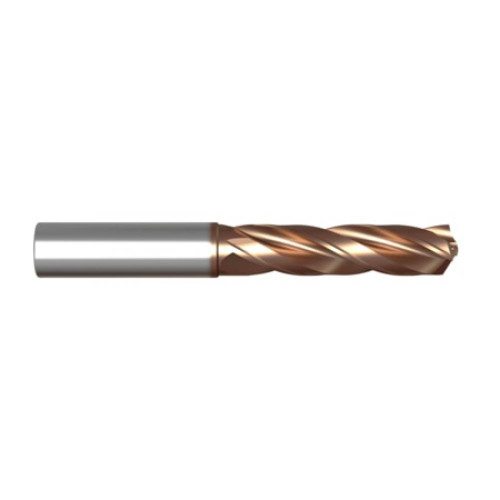

3/8 x 3/8 x 47 x 89 CARBIDE DREAM DRILL HIGH FEED 3XD W/ COOLANT HOLE (H COATING

YG-1

No reviews yet Write a Review
SKU:
YG1-DGR496024
$268.87

Specifications

Unit of Measure
Inch
Cutting Diameter (Metric)
9.53
Shank Diameter (Metric)
9.53
Overall Length (Metric)
89.00
Material
Solid Carbide
Shank Diameter (Decimal)
0.3750
Shank Diameter (Fractional)
3/8
Overall Length (Decimal)
3.5039
Coating/Finish
H-Coating
Type
High Feed
Point Angle
140 degrees
Flute Length (Decimal)
1.8504
LxD Ratio
3xD
Flute Length (Metric)
47.00
Size System
Fractional
Cutting Diameter (Decimal)
0.3750
Coolant Option
Internal Coolant
Workpiece Material
Steel, Cast Iron
Cutting Diameter (Fractional)
3/8
Cutting Diameter Tolerance
m7
Shank Tolerance
h6
Blank Standard
DIN 6537
3/8 x 3/8 x 47 x 89 CARBIDE DREAM DRILL HIGH FEED 3XD W/ COOLANT HOLE (H COATING
$268.87
