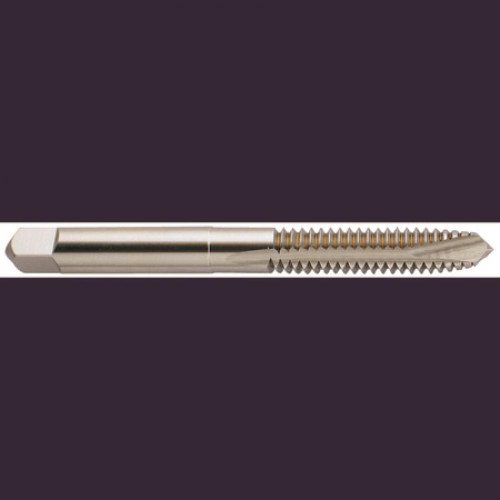

2FL HSS SP PT PLUG BRIGHT TAP FOR GENERAL PURPOSE

YG-1

No reviews yet Write a Review
SKU:
YG1-T7216182
$14.34

Specifications

Unit of Measure
Inch
Workpiece Material
Steel
Number of Flutes
2
Shank Type
Square
Overall Length (Decimal)
1.8740
Material
HSS
Coating/Finish
Bright/Uncoated
Shank Diameter (Decimal)
0.1410
Shank Diameter (Metric)
3.58
Overall Length (Metric)
47.60
Performance Class
General Purpose
Thread Standard
UNF
Thread Size
#4-48
LxD Ratio
3xD
Thread Limit
H2
Chamfer
Plug
Thread Pitch (TPI)
48
Blank Standard
302
Chamfer Length
4P-5P
Secondary Workpiece Material
Stainless Steel, Cast Iron, Non-Ferrous
Drill Size (Metric)
2.36
Square Length (Decimal)
0.1900
Square Length (Metric)
4.83
Square Size (Decimal)
0.1100
Square Size (Metric)
2.79
Thread Length (Decimal)
0.5630
Thread Length (Metric)
14.30
Usable Length (Decimal)
0.7990
Usable Length (Metric)
20.29
2FL HSS SP PT PLUG BRIGHT TAP FOR GENERAL PURPOSE
$14.34
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
