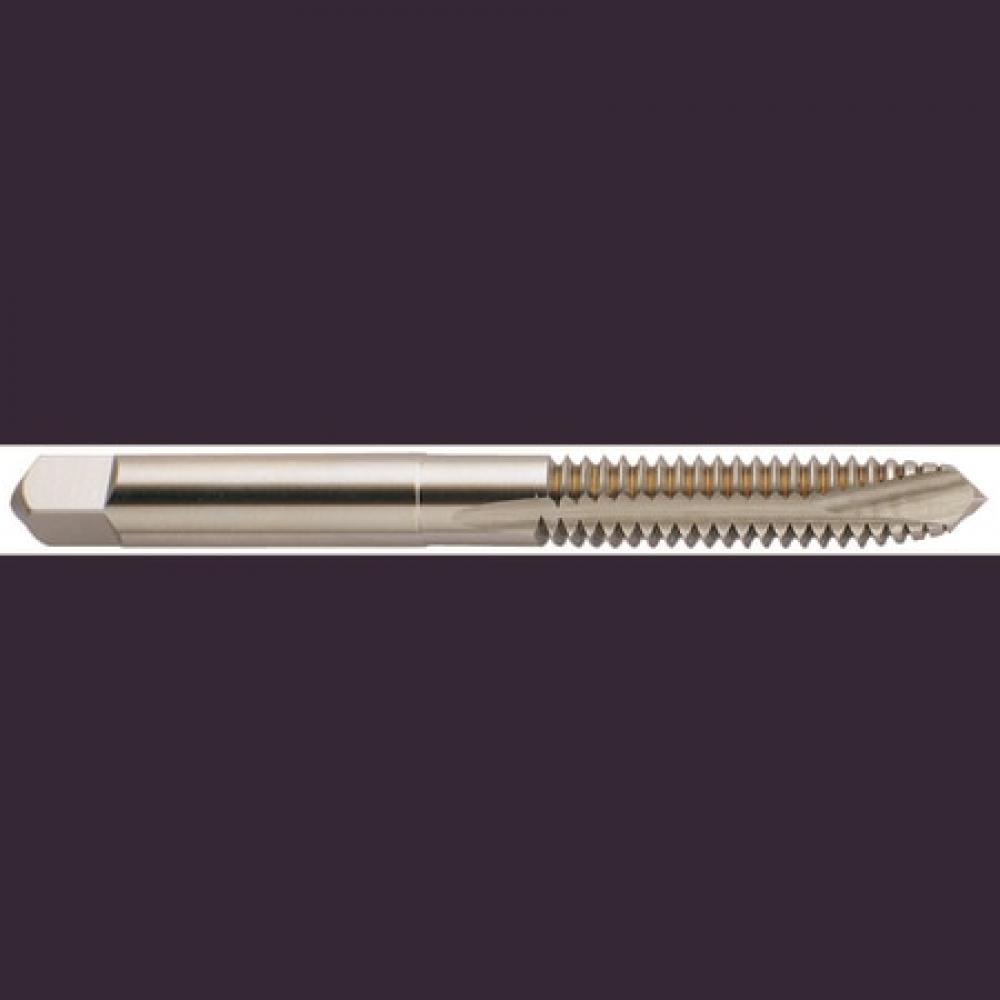

2FL HSS SP PT PLUG BRIGHT TAP FOR GENERAL PURPOSE

YG-1

No reviews yet Write a Review
SKU:
YG1-T7216281
$11.99

Specifications

Unit of Measure
Inch
Workpiece Material
Steel
Number of Flutes
2
Shank Type
Square
Overall Length (Decimal)
2.1260
Material
HSS
Coating/Finish
Bright/Uncoated
Shank Diameter (Decimal)
0.1680
Shank Diameter (Metric)
4.27
Overall Length (Metric)
54.00
Performance Class
General Purpose
Thread Standard
UNC
Thread Size
#8-32
LxD Ratio
3xD
Thread Limit
H1
Chamfer
Plug
Thread Pitch (TPI)
32
Blank Standard
302
Chamfer Length
4P-5P
Secondary Workpiece Material
Stainless Steel, Cast Iron, Non-Ferrous
Drill Size (Decimal)
0.1356
Drill Size (Metric)
3.44
Square Length (Decimal)
0.2500
Square Length (Metric)
6.35
Square Size (Decimal)
0.1310
Square Size (Metric)
3.33
Thread Length (Decimal)
0.7520
Thread Length (Metric)
19.10
Usable Length (Decimal)
1.0470
Usable Length (Metric)
26.59
2FL HSS SP PT PLUG BRIGHT TAP FOR GENERAL PURPOSE
$11.99
