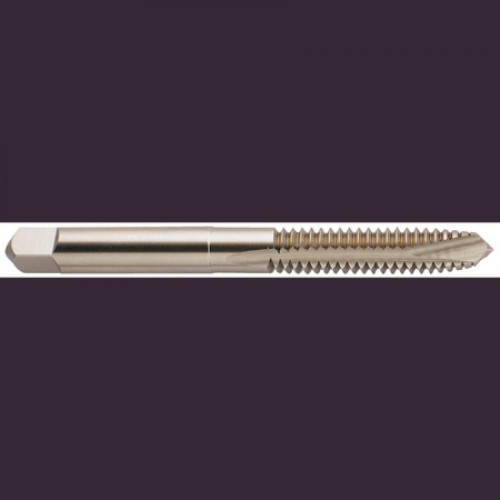

YG-1 Spiral Point Tap: #12-24, H3, Plug, 2 Flute, Bright/Uncoated, HSS, T7216363

YG-1

No reviews yet Write a Review
SKU:
YG1-T7216363
$12.54

YG-1 spiral point tap for steel, 2 flutes, plug chamfer, square shank. HSS, bright/uncoated. Manufacturer part number T7216363.

Specifications

Unit of Measure
Inch
Workpiece Material
Steel
Number of Flutes
2
Shank Type
Square
Overall Length (Decimal)
2.3740
Material
HSS
Coating/Finish
Bright/Uncoated
Shank Diameter (Decimal)
0.2200
Shank Diameter (Metric)
5.59
Overall Length (Metric)
60.30
Performance Class
General Purpose
Thread Standard
UNC
Thread Size
#12-24
LxD Ratio
3xD
Thread Limit
H3
Chamfer
Plug
Thread Pitch (TPI)
24
Blank Standard
302
Chamfer Length
4P-5P
Secondary Workpiece Material
Stainless Steel, Cast Iron, Non-Ferrous
Drill Size (Decimal)
0.1781
Drill Size (Metric)
4.52
Square Length (Decimal)
0.2800
Square Length (Metric)
7.11
Square Size (Decimal)
0.1650
Square Size (Metric)
4.19
Thread Length (Decimal)
0.9060
Thread Length (Metric)
23.01
Usable Length (Decimal)
1.2200
Usable Length (Metric)
30.99
