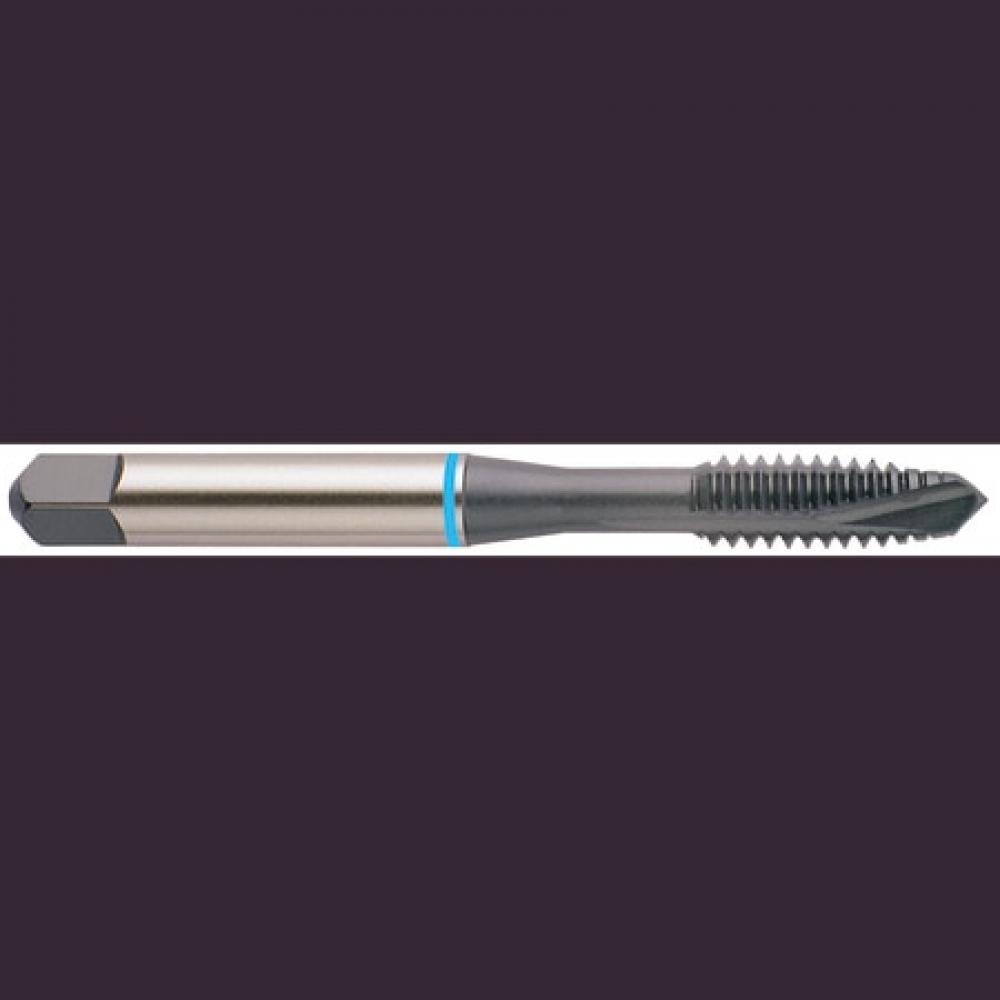

YG-1 Spiral Point Tap: #3-48, H5, Plug, 2 Flute, Steam Oxide, HSS, T6216125

YG-1

No reviews yet Write a Review
SKU:
YG1-T6216125
$14.34

YG-1 spiral point tap for steel, 2 flutes, plug chamfer, square shank. HSS, steam oxide finish. Manufacturer part number T6216125.

Specifications

Unit of Measure
Inch
Workpiece Material
Steel
Number of Flutes
2
Shank Type
Square
Overall Length (Decimal)
1.8110
Material
HSS
Coating/Finish
Steam Oxide
Shank Diameter (Decimal)
0.1410
Shank Diameter (Metric)
3.58
Overall Length (Metric)
46.00
Performance Class
General Purpose
Thread Standard
UNC
Thread Size
#3-48
LxD Ratio
3xD
Thread Limit
H5
Chamfer
Plug
Thread Pitch (TPI)
48
Blank Standard
302
Chamfer Length
4P-5P
Secondary Workpiece Material
Stainless Steel, Cast Iron, Non-Ferrous
Drill Size (Metric)
2.03
Square Length (Decimal)
0.1900
Square Length (Metric)
4.83
Square Size (Decimal)
0.1100
Square Size (Metric)
2.79
Thread Length (Decimal)
0.4920
Thread Length (Metric)
12.50
Usable Length (Decimal)
0.7280
Usable Length (Metric)
18.49
YG-1 Spiral Point Tap: #3-48, H5, Plug, 2 Flute, Steam Oxide, HSS, T6216125
$14.34
