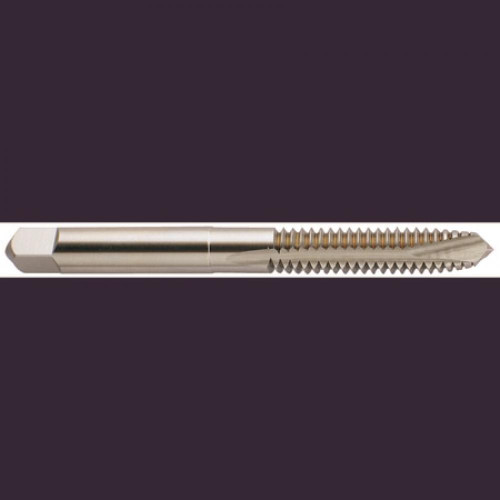

2FL SP PT TAP PLUG STANDARD BRIGHT

YG-1

No reviews yet Write a Review
SKU:
YG1-J0202
$13.31

Specifications

Unit of Measure
Imperial
Diameter
0.13 Inch
Number Of Flutes
2
Shank Type
Square
Overall Length
1.94 Inch
Cutting Direction
Right
Coating/Finish
Bright
Shank Diameter (Decimal)
0.15
Shank Diameter (Metric)
3.58
Overall Length (Metric)
49.28
Type
General Purpose
Through Coolant
No
Diameter (Metric)
3.18
Thread Standard
UNC
Thread Size
#5
Depth Of Cut
3 x D
Thread Limit
H2
Chamfer
Plug
Thread Pitch
40
Blank Standard
302
Chamfer Length
4P-5P
Connection (Decimal)
0.15 x 0.11
Connection (Metric)
3.58 x 2.79
Drill Size (Decimal)
0.11
Drill Size (Metric)
2.60
Square Length (Decimal)
0.19
Square Length (Metric)
4.83
Square Size (Decimal)
0.11
Square Size 2 (Decimal)
0.19
Square Size (Metric)
2.79
Square Size 2 (Metric)
4.83
Thread Length (Decimal)
0.63
Thread Length (Metric)
16
Useable Length (Decimal)
0.63
Useable Length (Metric)
16
2FL SP PT TAP PLUG STANDARD BRIGHT
$13.31
