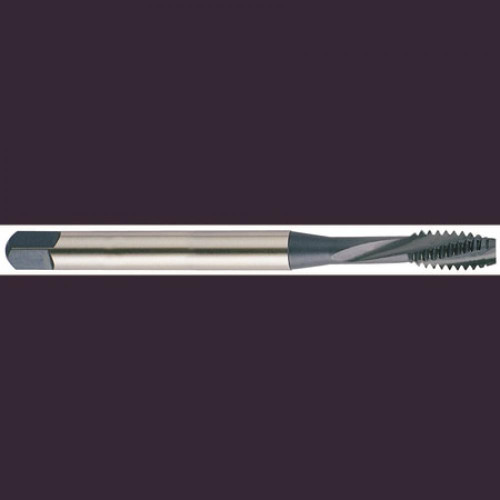

3/8-16 3FL MACHINING CENTER ASP23 TIN COATED TAP

YG-1

No reviews yet Write a Review
SKU:
YG1-H2483
$74.27

Specifications

Unit of Measure
Inch
Workpiece Material
Steel, Stainless Steel
Number of Flutes
3
Shank Type
Square
Overall Length (Fractional)
6
Coating/Finish
TiN
Shank Diameter (Decimal)
0.3810
Shank Diameter (Metric)
9.68
Overall Length (Metric)
152.40
Helix Angle
15 degrees
Thread Standard
UNC
Thread Size
3/8-16
LxD Ratio
3xD
Thread Limit
H3
Thread Pitch (TPI)
16
Chamfer Length
4P-5P
Secondary Workpiece Material
Non-Ferrous
Drill Size (Decimal)
0.3182
Drill Size (Metric)
8.08
Square Length (Decimal)
0.4400
Square Length (Metric)
11.18
Square Size (Decimal)
0.2860
Square Size (Metric)
7.26
Thread Length (Decimal)
0.7480
Thread Length (Metric)
19.00
Usable Length (Decimal)
1.8700
Usable Length (Metric)
47.50
3/8-16 3FL MACHINING CENTER ASP23 TIN COATED TAP
$74.27
