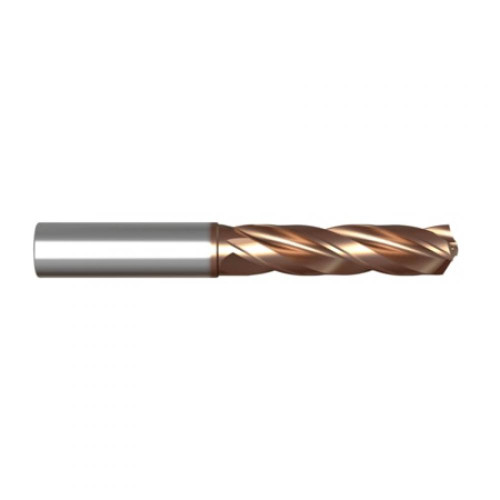

.368 x 3/4 x 47 x 89 CARBIDE DREAM DRILL HIGH FEED 3XD W/ COOLANT HOLE (H COATING

YG-1

No reviews yet Write a Review
SKU:
YG1-DGR496221
$322.53

Specifications

Unit of Measure
Metric
Diameter
9.35 mm
Shank Size
19.05 mm
Overall Length
89 mm
Cutting Direction
Right
Material
Carbide
Shank Diameter (Decimal)
0.75
Shank Diameter (Fractional)
3/4
Overall Length (Decimal)
3.51
Overall Length (Fractional)
3-1/2
Type
High Feed
Point Angle
140 degrees
Flute Length (Decimal)
1.86
Flute Length (Fractional)
1-17/20
Flute Length
47 mm
Point Length (Decimal)
0.07
Point Length (Metric)
1.70
Length Of Cut
3
Diameter (Decimal)
0.37
Through Coolant
Yes
Workpiece Material
"Steel, Cast Iron"
Diameter (Fractional)
7/19
Drill Point Length (Decimal)
0.07
Drill Point Length (Metric)
1.70
Hole Tolerance
M7
Shank Tolerance
H6
Letter Size
U
Blank Standard
DIN 6537
.368 x 3/4 x 47 x 89 CARBIDE DREAM DRILL HIGH FEED 3XD W/ COOLANT HOLE (H COATING
$322.53
