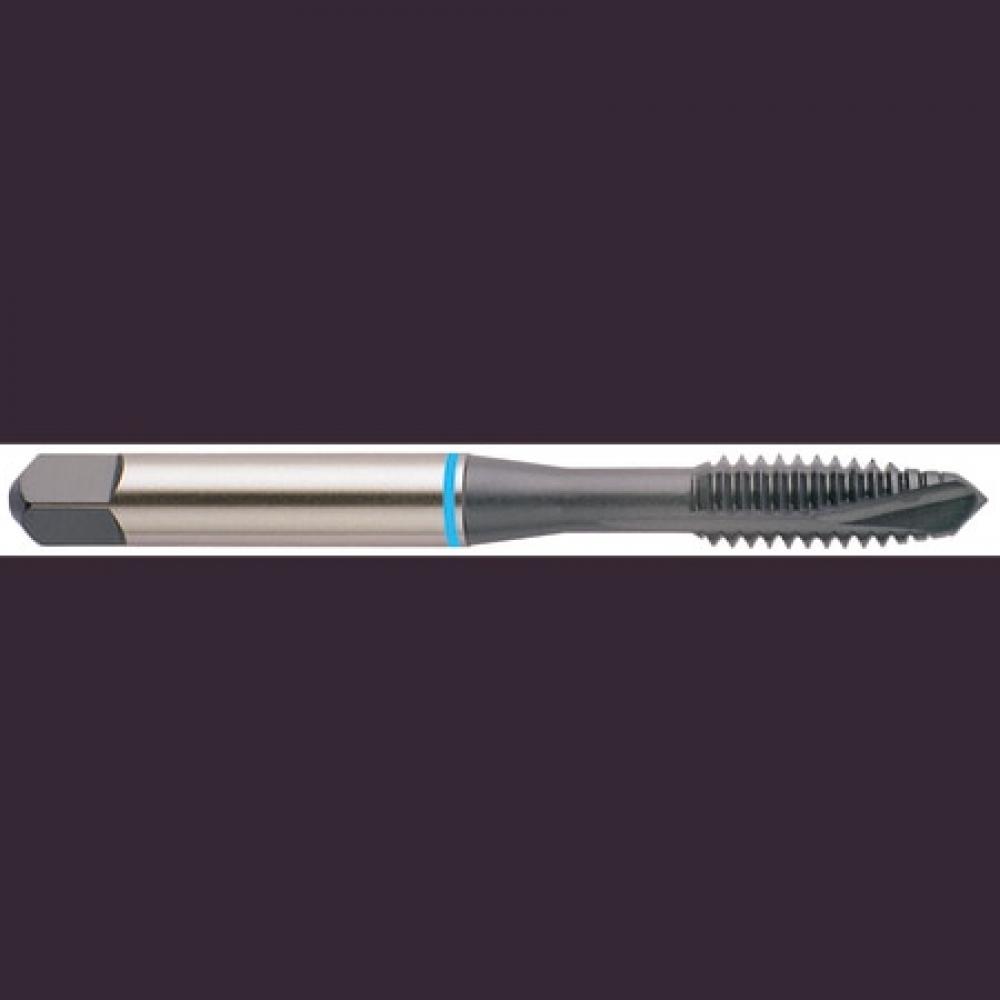

YG-1 Spiral Point Tap: M12 x 1.75, D6, Plug, 3 Flute, Hardslick, L9506

YG-1

No reviews yet Write a Review
SKU:
YG1-L9506
$45.11

YG-1 spiral point tap for steel, 3 flutes, plug chamfer, square shank. Hardslick coating. Manufacturer part number L9506.

Specifications

Unit of Measure
Metric
Workpiece Material
Steel
Number of Flutes
3
Shank Type
Square
Overall Length (Decimal)
3.3740
Coating/Finish
Hardslick
Shank Diameter (Decimal)
0.3670
Shank Diameter (Metric)
9.32
Overall Length (Metric)
85.70
Performance Class
General Purpose
Thread Standard
M
Thread Size
M12 x 1.75
LxD Ratio
3xD
Thread Limit
D6
Chamfer
Plug
Thread Pitch (mm)
1.75
Blank Standard
302A
Chamfer Length
4P-5P
Secondary Workpiece Material
Stainless Steel, Cast Iron, Non-Ferrous
Drill Size (Decimal)
0.4098
Drill Size (Metric)
10.41
Square Length (Decimal)
0.4400
Square Length (Metric)
11.18
Square Size (Decimal)
0.2750
Square Size (Metric)
6.99
Thread Length (Decimal)
0.9370
Thread Length (Metric)
23.80
Usable Length (Decimal)
1.5940
Usable Length (Metric)
40.49
