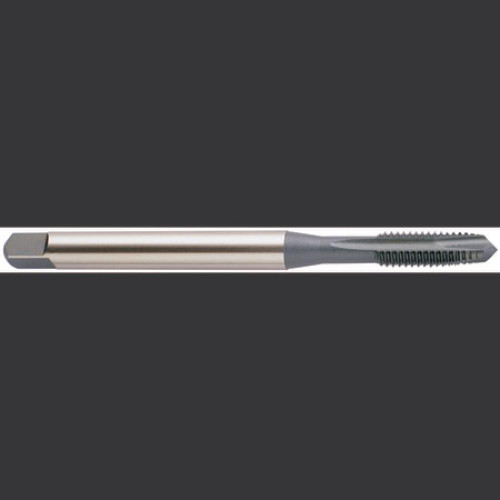

3FL SP PT PLUG SS 20-28RcTICN-COATED

YG-1

No reviews yet Write a Review
SKU:
YG1-K5607
$79.29

Specifications

Unit of Measure
Metric
Secondary Workpiece Material
Non-Ferrous
Number of Flutes
3
Shank Type
Square
Overall Length (Decimal)
4.3310
Coating/Finish
TiCN
Shank Diameter (Decimal)
0.4800
Shank Diameter (Metric)
12.19
Overall Length (Metric)
110.01
Workpiece Material
Steel, Stainless Steel
Thread Standard
M
Thread Size
M16 x 2
LxD Ratio
3xD
Thread Limit
D7
Chamfer
Plug
Thread Pitch (mm)
2
Blank Standard
DIN/ANSI
Chamfer Length
4P-5P
Drill Size (Decimal)
0.5583
Drill Size (Metric)
14.18
Square Length (Decimal)
0.5600
Square Length (Metric)
14.22
Square Size (Decimal)
0.3600
Square Size (Metric)
9.14
Thread Length (Decimal)
1.0830
Thread Length (Metric)
27.51
Usable Length (Decimal)
1.8110
Usable Length (Metric)
46.00
3FL SP PT PLUG SS 20-28RcTICN-COATED
$79.29
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
