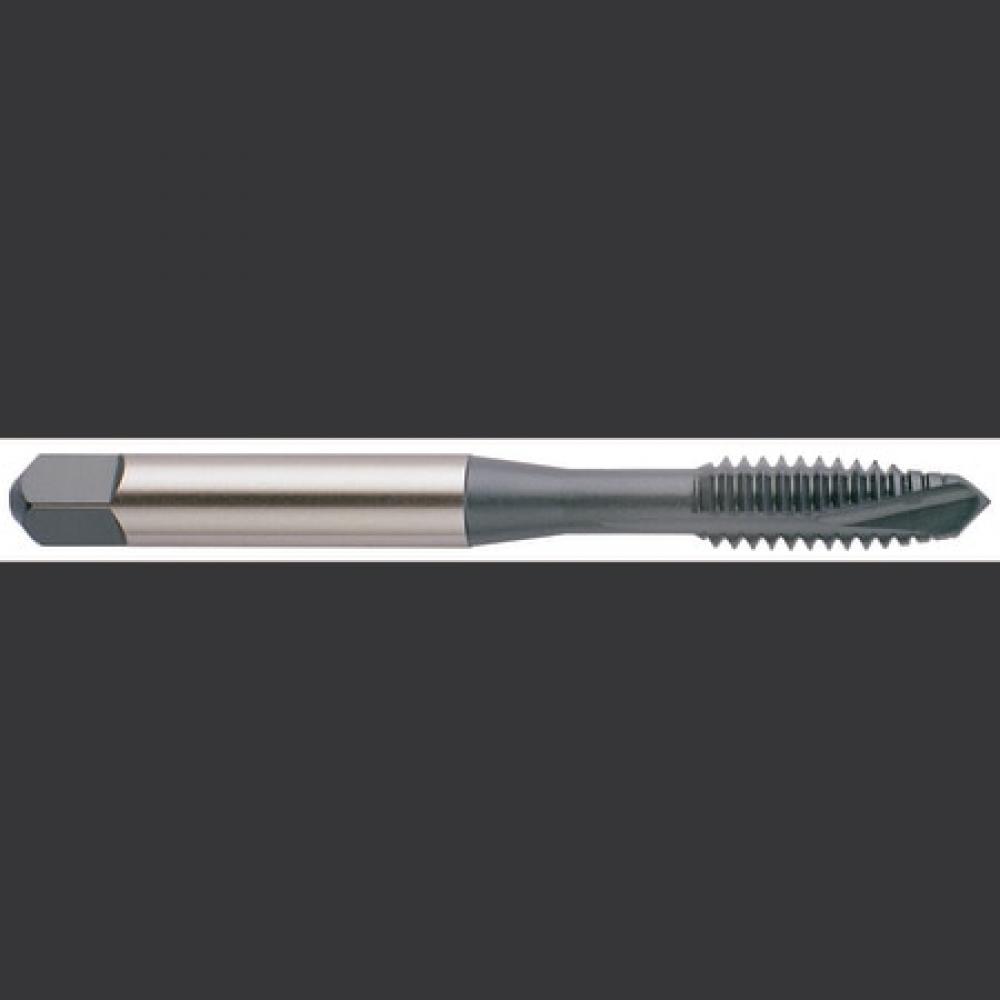

YG-1 Spiral Point Tap: M12 x 1.75, D5, Plug, 3 Flute, Hardslick, IA506

YG-1

No reviews yet Write a Review
SKU:
YG1-IA506
$48.32

YG-1 spiral point tap for steel and stainless steel, 3 flutes, plug chamfer, square shank. Hardslick coating. Manufacturer part number IA506.

Specifications

Unit of Measure
Metric
Number of Flutes
3
Shank Type
Square
Overall Length (Decimal)
3.3740
Coating/Finish
Hardslick
Shank Diameter (Decimal)
0.3810
Shank Diameter (Metric)
9.68
Overall Length (Metric)
85.70
Workpiece Material
Steel, Stainless Steel
Thread Standard
M
Thread Size
M12 x 1.75
LxD Ratio
3xD
Thread Limit
D5
Chamfer
Plug
Thread Pitch (mm)
1.75
Blank Standard
302A
Chamfer Length
4P-5P
Secondary Workpiece Material
Non-Ferrous
Drill Size (Decimal)
0.4098
Drill Size (Metric)
10.41
Square Length (Decimal)
0.4400
Square Length (Metric)
11.18
Square Size (Decimal)
0.2860
Square Size (Metric)
7.26
Thread Length (Decimal)
0.4330
Thread Length (Metric)
11.00
Usable Length (Decimal)
1.2520
Usable Length (Metric)
31.80
