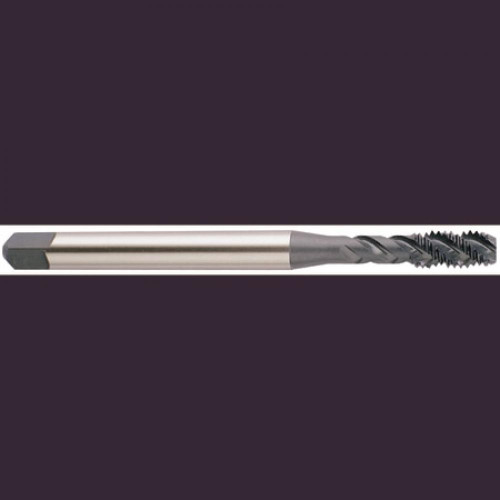

#6-32 3FL SP FL BOTTOM G/T LONG SHANK HARDSLICK TAP

YG-1

No reviews yet Write a Review
SKU:
YG1-G9243
$58.86

Specifications

Unit of Measure
Imperial
Diameter
0.14 Inch
Number Of Flutes
3
Shank Type
Square
Overall Length
4 Inch
Cutting Direction
Right
Coating/Finish
Hardslick
Shank Diameter (Decimal)
0.15
Shank Diameter (Metric)
3.58
Overall Length (Metric)
101.60
Neck Diameter (Decimal)
0.10
Neck Diameter (Metric)
2.39
Diameter (Metric)
3.51
Thread Standard
UNC
Thread Size
#6
Depth Of Cut
2.50 x D
Thread Limit
H3
Chamfer
Modified Bottoming
Thread Pitch
32
Blank Standard
302A
Chamfer Length
2P-3P
Connection (Decimal)
0.15 x 0.11
Connection (Metric)
3.58 x 2.79
Drill Size (Decimal)
0.11
Drill Size (Metric)
2.78
Square Length (Decimal)
0.19
Square Length (Metric)
4.83
Square Size (Decimal)
0.11
Square Size 2 (Decimal)
0.19
Square Size (Metric)
2.79
Square Size 2 (Metric)
4.83
Thread Length (Decimal)
0.28
Thread Length (Metric)
7.01
Useable Length (Decimal)
0.69
Useable Length (Metric)
17.50
#6-32 3FL SP FL BOTTOM G/T LONG SHANK HARDSLICK TAP
$58.86
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
