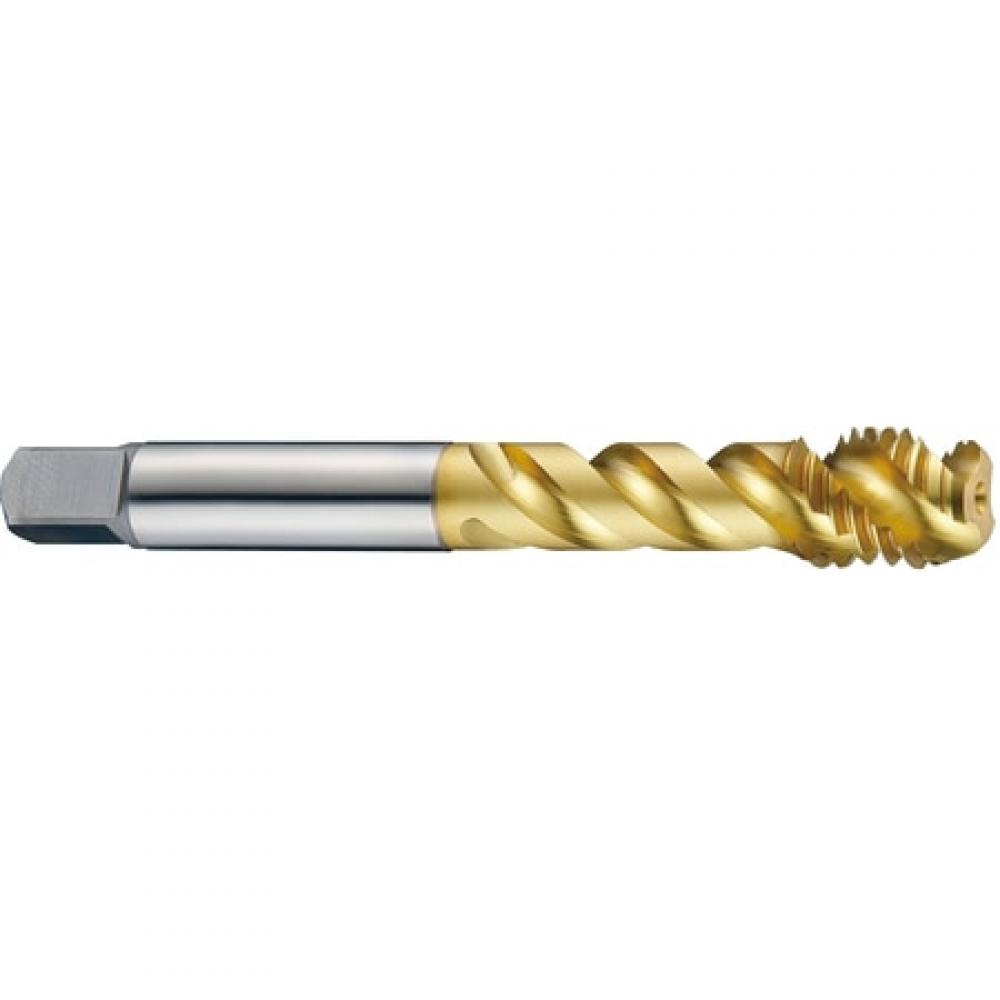

9/16-18UNF H3 91.3L Spiral flute for high speed tapping

YG-1

No reviews yet Write a Review
SKU:
YG1-TTS65623
$114.52

Specifications

Unit of Measure
Inch
Shank Type
Square
Coating/Finish
TiN
Shank Diameter (Decimal)
0.4290
Shank Diameter (Metric)
10.90
Overall Length (Decimal)
3.5900
Overall Length (Metric)
91.19
Helix Angle
45 degrees
Neck Length (Decimal)
2.0670
Neck Length (Metric)
52.50
Thread Standard
UNF
Thread Size
9/16-18
LxD Ratio
2.5xD
Thread Limit
H3
Thread Pitch (TPI)
18
Chamfer Length
2P-3P
Workpiece Material
Steel, Stainless Steel, Cast Iron, Non-Ferrous
Drill Size (Metric)
13.00
Square Length (Decimal)
0.5000
Square Length (Metric)
12.70
Square Size (Decimal)
0.3220
Square Size (Metric)
8.18
Thread Length (Metric)
14.12
Usable Length (Decimal)
2.0670
Usable Length (Metric)
52.50
9/16-18UNF H3 91.3L Spiral flute for high speed tapping
$114.52
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
