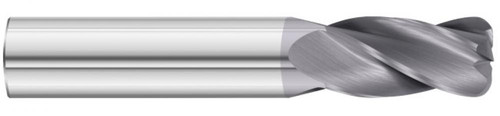

Fullerton Corner Radius End Mill: 7/16" Dia, 1" LOC, 2-3/4" OAL, .090" Corner Radius, 4 Flute, TiAlN, 31574

Fullerton

No reviews yet Write a Review
SKU:
FUL-31574
$95.22

7/16" Dia, 1" LOC, 2-3/4" OAL, .090" Corner Radius Fullerton Corner Radius End Mill, manufacturer part number 31574.

Specifications: Cutting Diameter: 7/16 in (0.4375 in, 11.11 mm); Length of Cut: 1 in (1.0000 in, 25.40 mm); Overall Length: 2-3/4 in (2.7500 in, 69.85 mm); Corner Radius: 0.0900 in (2.29 mm); Shank Diameter: 7/16 in (0.4375 in, 11.11 mm); Number of Flutes: 4; Helix Angle: 30 degrees; Double Ended: No; Color: Violet-Gray; Length Type: Standard; Coolant Option: External Coolant; End Type: Corner Radius; Hand Direction: Right; Helix Direction: Right.

Coating/Finish: TiAlN. Unit of measure: Inch.

Specifications

Unit of Measure
Inch
Length of Cut (Decimal)
1.0000
Overall Length (Decimal)
2.7500
Double Ended
No
Hand Direction
Right
Coating/Finish
TiAlN
Cutting Diameter (Metric)
11.11
Length of Cut (Metric)
25.40
Length of Cut (Fractional)
1
Shank Diameter (Metric)
11.11
Shank Diameter (Fractional)
7/16
Overall Length (Metric)
69.85
Overall Length (Fractional)
2-3/4
Helix Angle
30 degrees
Cutting Diameter (Decimal)
0.4375
Number of Flutes
4
Cutting Diameter (Fractional)
7/16
Shank Diameter (Decimal)
0.4375
Length Type
Standard
Color
Violet-Gray
Coolant Option
External Coolant
Corner Radius (Decimal)
0.0900
Corner Radius (Metric)
2.29
End Type
Corner Radius
Helix Direction
Right
Size System
Fractional
