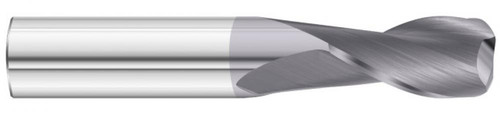

Fullerton Corner Radius End Mill: 1/2" Dia, 1" LOC, 3" OAL, .090" Corner Radius, 2 Flute, TiAlN, 33883

Fullerton

No reviews yet Write a Review
SKU:
FUL-33883
$108.60

1/2" Dia, 1" LOC, 3" OAL, .090" Corner Radius Fullerton Corner Radius End Mill, manufacturer part number 33883.

Specifications: Cutting Diameter: 1/2 in (0.5000 in, 12.70 mm); Length of Cut: 1 in (1.0000 in, 25.40 mm); Overall Length: 3 in (3.0000 in, 76.20 mm); Corner Radius: 0.0900 in (2.29 mm); Shank Diameter: 1/2 in (0.5000 in, 12.70 mm); Number of Flutes: 2; Helix Angle: 30 degrees; Double Ended: No; Color: Violet-Gray; Length Type: Standard; Coolant Option: External Coolant; End Type: Corner Radius; Hand Direction: Right; Helix Direction: Right.

Coating/Finish: TiAlN. Unit of measure: Inch.

Specifications

Unit of Measure
Inch
Length of Cut (Decimal)
1.0000
Overall Length (Decimal)
3.0000
Double Ended
No
Hand Direction
Right
Coating/Finish
TiAlN
Cutting Diameter (Metric)
12.70
Length of Cut (Metric)
25.40
Length of Cut (Fractional)
1
Shank Diameter (Metric)
12.70
Shank Diameter (Fractional)
1/2
Overall Length (Metric)
76.20
Overall Length (Fractional)
3
Helix Angle
30 degrees
Cutting Diameter (Decimal)
0.5000
Number of Flutes
2
Cutting Diameter (Fractional)
1/2
Shank Diameter (Decimal)
0.5000
Length Type
Standard
Color
Violet-Gray
Coolant Option
External Coolant
Corner Radius (Decimal)
0.0900
Corner Radius (Metric)
2.29
End Type
Corner Radius
Helix Direction
Right
Size System
Fractional
Fullerton Corner Radius End Mill: 1/2" Dia, 1" LOC, 3" OAL, .090" Corner Radius, 2 Flute, TiAlN, 33883
$108.60
