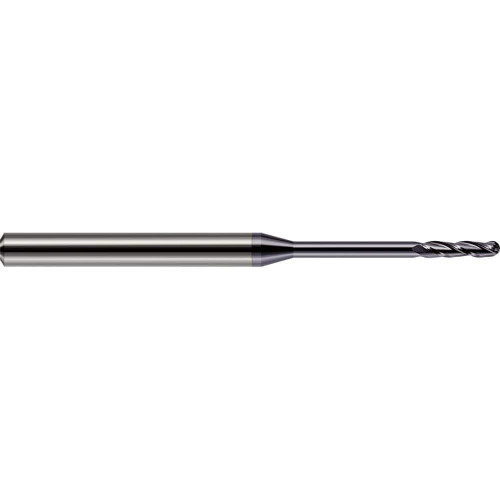

Harvey Tool Ball End Mill: 3/32" Dia, 3/4" LOC, 2-1/2" OAL, 1-1/4" Reach, 3 Flute, AlTiN, 13893-C3

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-13893-C3
$75.50

Harvey Tool ball end mill, 3 flutes, center cutting. Solid carbide, AlTiN coating. Manufacturer part number 13893-C3.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.0930
Length of Cut (Decimal)
0.7500
Shank Diameter (Decimal)
0.1250
Overall Length (Decimal)
2.5000
Coating/Finish
AlTiN
Length of Cut (Fractional)
3/4
Overall Length (Fractional)
2-1/2
Neck Diameter (Decimal)
0.0915
Number of Flutes
3
Shank Diameter (Fractional)
1/8
Size System
Fractional
Center Cutting
Yes
Cutting Diameter (Fractional)
3/32
Reach (Decimal)
1.2500
Reach Multiple
13x
Cutting Diameter Tolerance (Decimal)
+0.0005/-0.0005
End Type
Ball
LxD Ratio
8xD
Material
Solid Carbide
Reach (Fractional)
1-1/4
Harvey Tool Ball End Mill: 3/32" Dia, 3/4" LOC, 2-1/2" OAL, 1-1/4" Reach, 3 Flute, AlTiN, 13893-C3
$75.50
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
