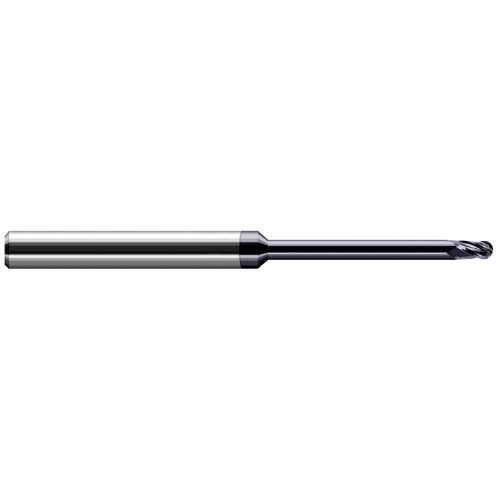

Harvey Tool Ball End Mill: 1/16" Dia, 3/32" LOC, 2-1/2" OAL, 3/4" Reach, 4 Flute, AlTiN, 65462-C3

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-65462-C3
$93.50

Harvey Tool ball end mill for steel and stainless steel, 4 flutes, variable helix, center cutting. Solid carbide, AlTiN coating. Manufacturer part number 65462-C3.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.0620
Length of Cut (Decimal)
0.0930
Shank Diameter (Decimal)
0.1250
Overall Length (Decimal)
2.5000
Coating/Finish
AlTiN
Length of Cut (Fractional)
3/32
Overall Length (Fractional)
2-1/2
Neck Diameter (Decimal)
0.0605
Number of Flutes
4
Shank Diameter (Fractional)
1/8
Size System
Fractional
Center Cutting
Yes
Cutting Diameter (Fractional)
1/16
Reach (Decimal)
0.7500
Reach Multiple
12x
Cutting Diameter Tolerance (Decimal)
+0.0005/-0.0005
End Type
Ball
LxD Ratio
1.5xD
Material
Solid Carbide
Reach (Fractional)
3/4
Shank Tolerance
h6
Variable Helix
Yes
Workpiece Material
Steel, Stainless Steel
Harvey Tool Ball End Mill: 1/16" Dia, 3/32" LOC, 2-1/2" OAL, 3/4" Reach, 4 Flute, AlTiN, 65462-C3
$93.50
