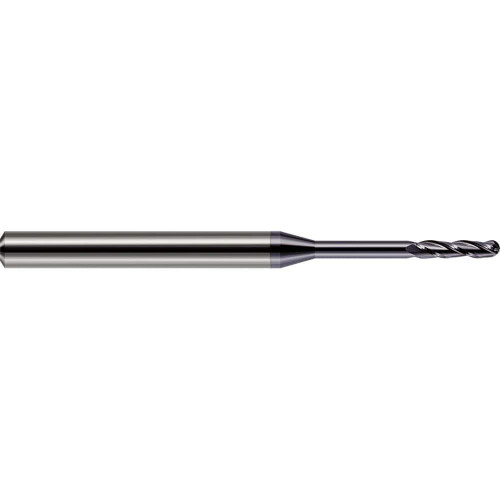

Harvey Tool Ball End Mill: 1/4" Dia, 1-1/2" LOC, 4" OAL, 2" Reach, 3 Flute, AlTiN, 14816-C3

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-14816-C3
$91.30

Harvey Tool ball end mill, 3 flutes, center cutting. Solid carbide, AlTiN coating. Manufacturer part number 14816-C3.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.2500
Length of Cut (Decimal)
1.5000
Shank Diameter (Decimal)
0.2500
Overall Length (Decimal)
4.0000
Coating/Finish
AlTiN
Length of Cut (Fractional)
1-1/2
Neck Diameter (Decimal)
0.2485
Number of Flutes
3
Shank Diameter (Fractional)
1/4
Overall Length (Fractional)
4
Size System
Fractional
Cutting Diameter (Fractional)
1/4
Center Cutting
Yes
Reach Multiple
8x
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
End Type
Ball
LxD Ratio
6xD
Material
Solid Carbide
Reach (Decimal)
2.0000
Reach (Fractional)
2
