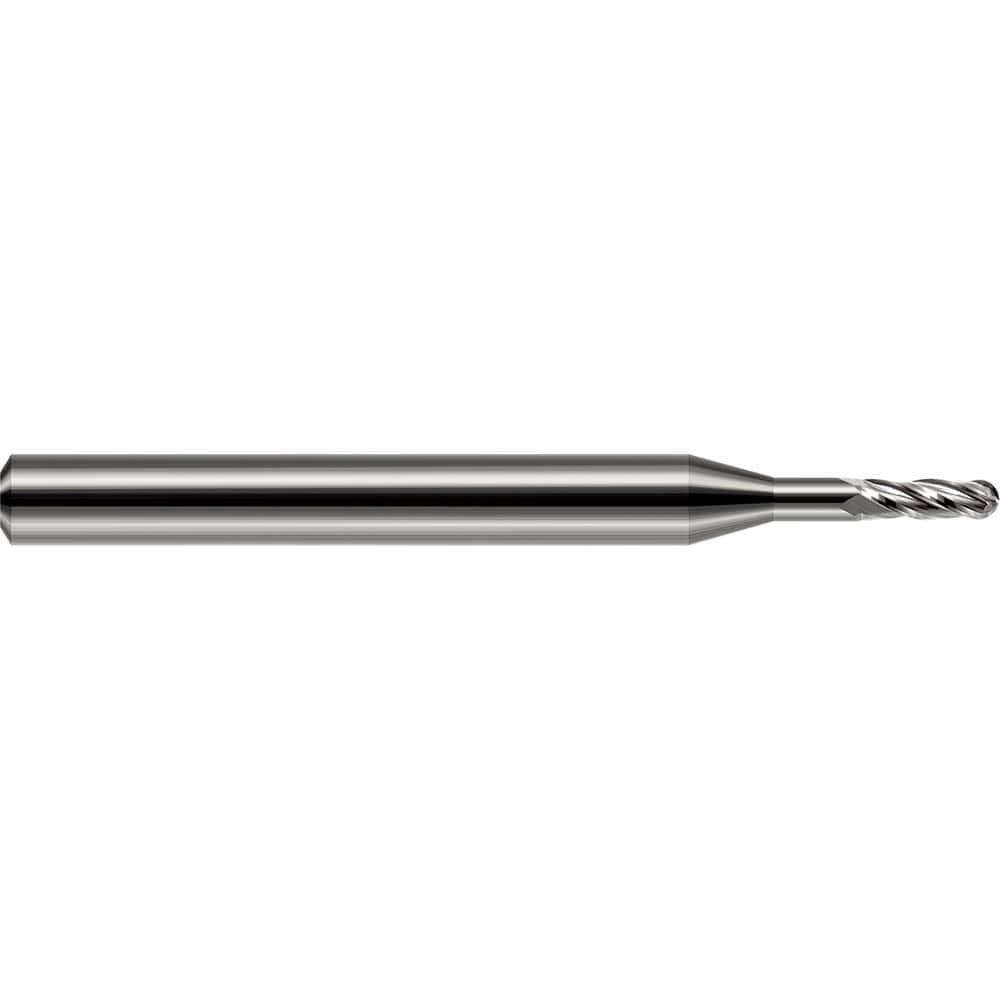

Harvey Tool Ball End Mill: 1/4" Dia, 3/4" LOC, 2-1/2" OAL, 1-1/4" Reach, 4 Flute, AlTiN, 982916-C3

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-982916-C3
$95.10

Harvey Tool ball end mill, 4 flutes, center cutting. Solid carbide, AlTiN coating. Manufacturer part number 982916-C3.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.2500
Length of Cut (Decimal)
0.7500
Shank Diameter (Decimal)
0.2500
Overall Length (Decimal)
2.5000
Coating/Finish
AlTiN
Length of Cut (Fractional)
3/4
Overall Length (Fractional)
2-1/2
Neck Diameter (Decimal)
0.2460
Number of Flutes
4
Shank Diameter (Fractional)
1/4
Neck Length (Decimal)
0.5000
Neck Length (Fractional)
1/2
Cutting Diameter (Fractional)
1/4
Size System
Fractional
Reach Multiple
5x
Center Cutting
Yes
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
End Type
Ball
LxD Ratio
3xD
Material
Solid Carbide
Reach (Decimal)
1.2500
Reach (Fractional)
1-1/4
Harvey Tool Ball End Mill: 1/4" Dia, 3/4" LOC, 2-1/2" OAL, 1-1/4" Reach, 4 Flute, AlTiN, 982916-C3
$95.10
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
