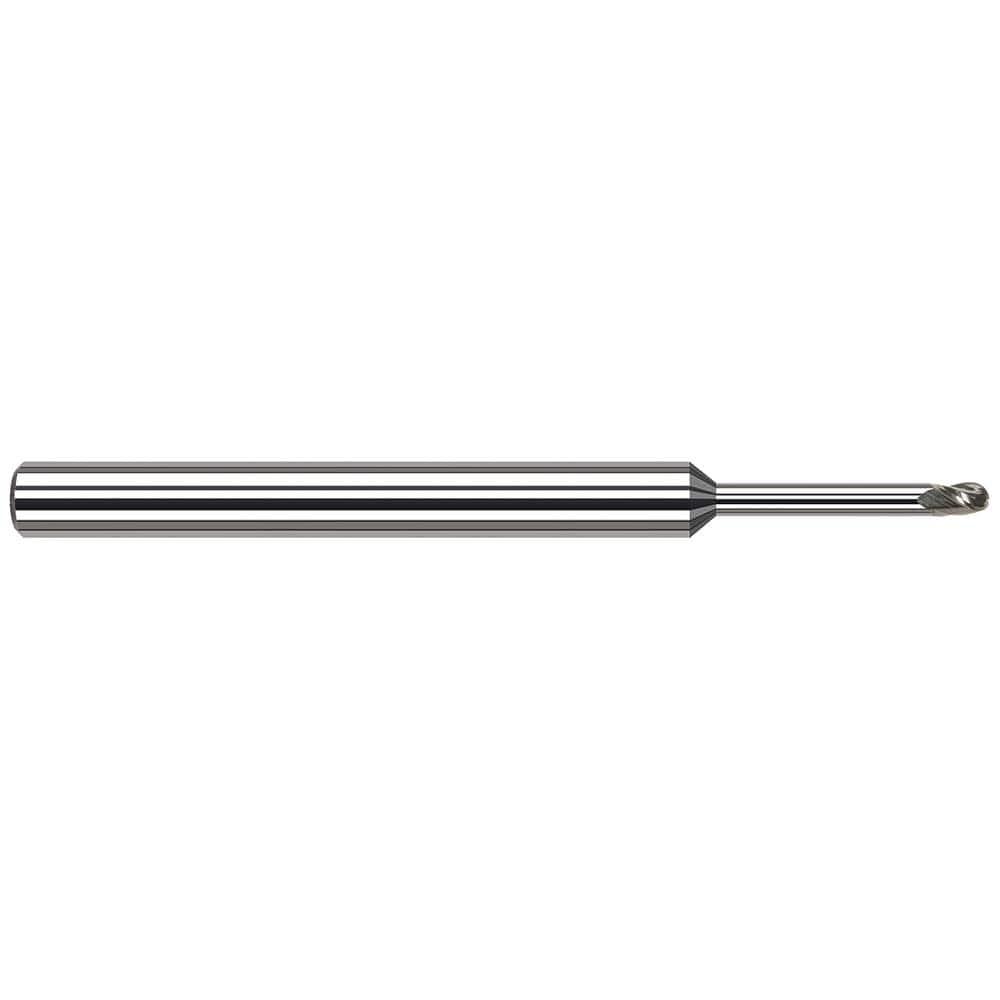

Harvey Tool Ball End Mill: 1/16" Dia, 3/32" LOC, 2-1/2" OAL, 1/2" Reach, 2 Flute, Uncoated, 29862

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-29862
$81.50

Harvey Tool ball end mill, 2 flutes, center cutting. Solid carbide, uncoated. Manufacturer part number 29862.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.0620
Length of Cut (Decimal)
0.0930
Shank Diameter (Decimal)
0.1250
Overall Length (Decimal)
2.5000
Coating/Finish
Uncoated
Length of Cut (Fractional)
3/32
Overall Length (Fractional)
2-1/2
Neck Diameter (Decimal)
0.0720
Number of Flutes
2
Neck Length (Decimal)
0.0620
Neck Length (Fractional)
1/16
Shank Diameter (Fractional)
1/8
Size System
Fractional
Center Cutting
Yes
Cutting Diameter (Fractional)
1/16
Reach (Decimal)
0.5000
Minor Diameter (Decimal)
0.0570
Neck Angle
2
Tapered Reach (Decimal)
0.3750
Tapered Reach (Fractional)
3/8
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0010
End Type
Ball
LxD Ratio
1.5xD
Material
Solid Carbide
Reach (Fractional)
1/2
Shank Tolerance
h6
