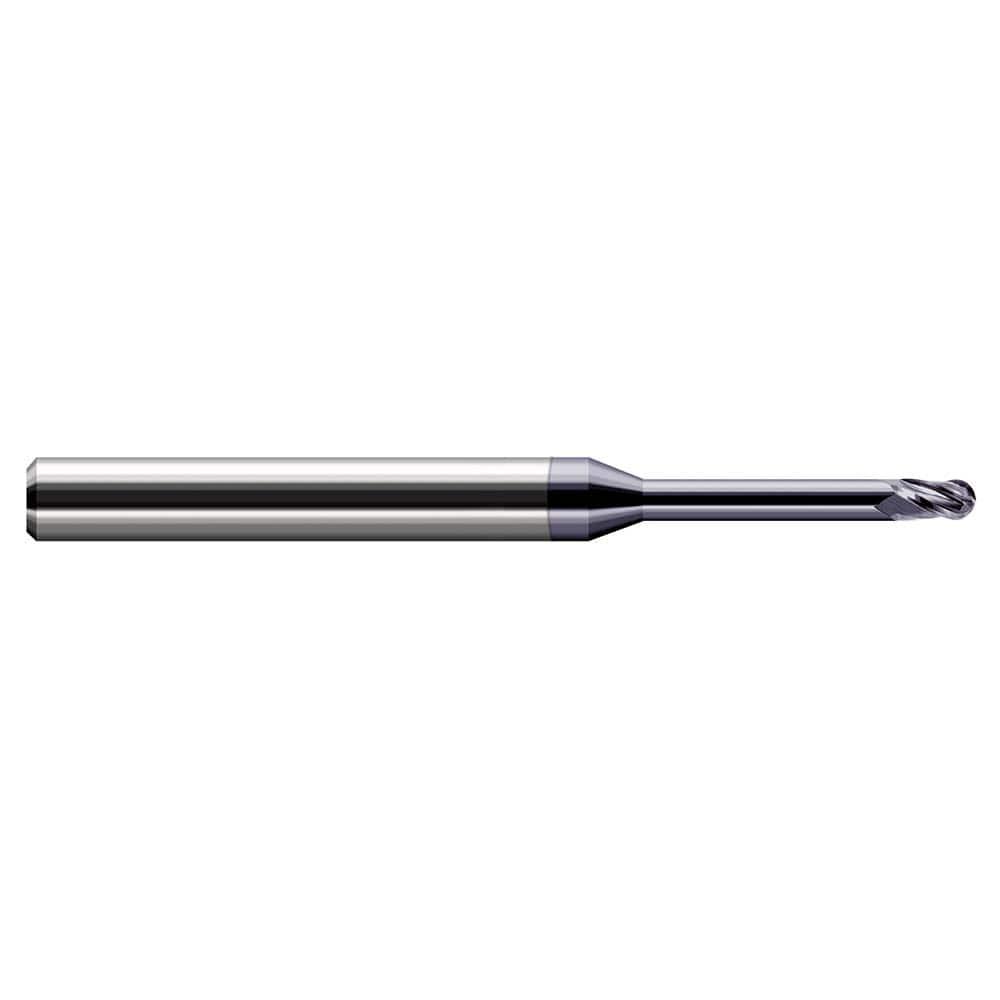

Harvey Tool Ball End Mill: 1/16" Dia, 3/32" LOC, 2-1/2" OAL, 1/2" Reach, 4 Flute, Uncoated, 801362

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-801362
$64.00

Harvey Tool ball end mill, 4 flutes, center cutting. Solid carbide, uncoated. Manufacturer part number 801362.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.0620
Length of Cut (Decimal)
0.0930
Shank Diameter (Decimal)
0.1250
Overall Length (Decimal)
2.5000
Coating/Finish
Uncoated
Length of Cut (Fractional)
3/32
Overall Length (Fractional)
2-1/2
Neck Diameter (Decimal)
0.0605
Number of Flutes
4
Shank Diameter (Fractional)
1/8
Size System
Fractional
Center Cutting
Yes
Cutting Diameter (Fractional)
1/16
Reach (Decimal)
0.5000
Reach Multiple
8x
Cutting Diameter Tolerance (Decimal)
+0.0005/-0.0005
End Type
Ball
LxD Ratio
1.5xD
Material
Solid Carbide
Reach (Fractional)
1/2
