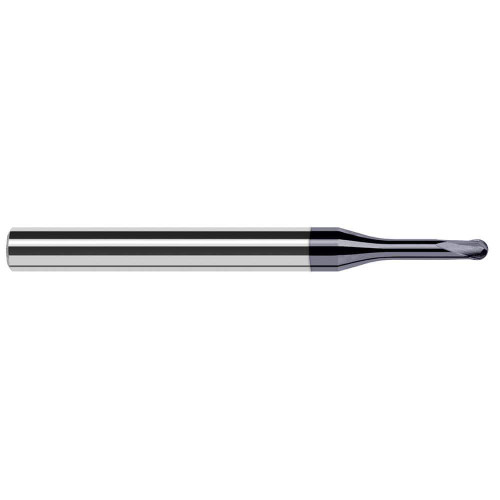

Harvey Tool Ball End Mill: 1/32" Dia, .025" LOC, 2-1/2" OAL, 5/32" Reach, 2 Flute, AlTiN Nano, 38731-C6

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-38731-C6
$107.50

Harvey Tool ball end mill for hardened steel, 2 flutes, center cutting. Solid carbide, AlTiN Nano coating. Manufacturer part number 38731-C6.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.0310
Length of Cut (Decimal)
0.0250
Shank Diameter (Decimal)
0.2500
Overall Length (Decimal)
2.5000
Coating/Finish
AlTiN Nano
Overall Length (Fractional)
2-1/2
Neck Diameter (Decimal)
0.0290
Number of Flutes
2
Shank Diameter (Fractional)
1/4
Size System
Fractional
Center Cutting
Yes
Cutting Diameter (Fractional)
1/32
Reach (Decimal)
0.1560
Reach Multiple
5x
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0006
End Type
Ball
LxD Ratio
0.8xD
Material
Solid Carbide
Maximum Workpiece Hardness
68 HRC
Reach (Fractional)
5/32
Shank Tolerance
h6
Workpiece Material
Hardened Steel
Harvey Tool Ball End Mill: 1/32" Dia, .025" LOC, 2-1/2" OAL, 5/32" Reach, 2 Flute, AlTiN Nano, 38731-C6
$107.50
