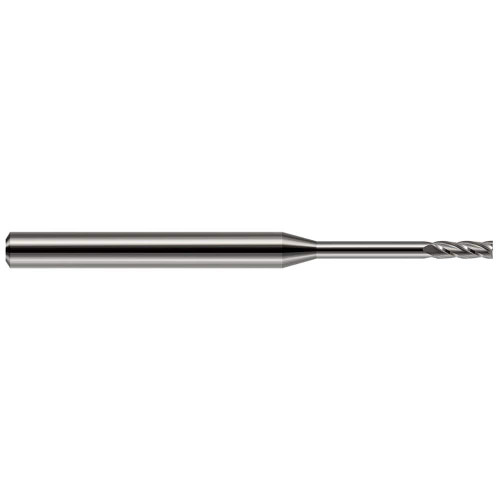

Harvey Tool Square End Mill: 1/64" Dia, .045" LOC, 1-1/2" OAL, 5/32" Reach, 4 Flute, Uncoated, 846115

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-846115
$61.50

Harvey Tool square end mill, 4 flutes, center cutting, external coolant. Solid carbide, uncoated. Manufacturer part number 846115.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.0150
Length of Cut (Decimal)
0.0450
Shank Diameter (Decimal)
0.1250
Number of Flutes
4
Overall Length (Decimal)
1.5000
Coating/Finish
Uncoated
Overall Length (Fractional)
1-1/2
Neck Diameter (Decimal)
0.0142
Double Ended
No
Center Cutting
Yes
Chip Breaker
No
Neck Length (Decimal)
0.1110
Shank Diameter (Fractional)
1/8
Size System
Fractional
Reach (Decimal)
0.1560
Cutting Diameter (Fractional)
1/64
Coolant Option
External Coolant
Reach (Fractional)
5/32
Reach Multiple
10x
Cutting Diameter Tolerance (Decimal)
+0.0005/-0.0005
End Type
Square
LxD Ratio
3xD
Material
Solid Carbide
Harvey Tool Square End Mill: 1/64" Dia, .045" LOC, 1-1/2" OAL, 5/32" Reach, 4 Flute, Uncoated, 846115
$61.50
