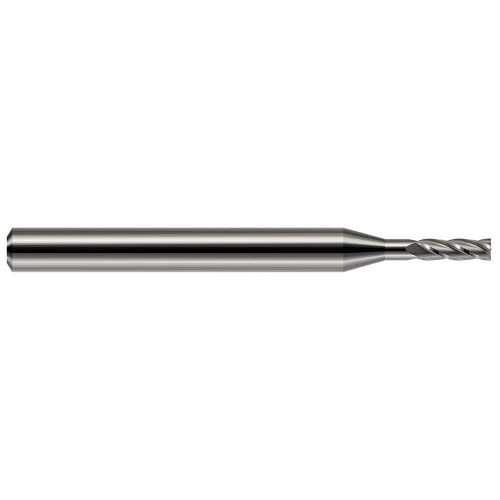

Harvey Tool Square End Mill: 1/64" Dia, .045" LOC, 1-1/2" OAL, 5/64" Reach, 4 Flute, Uncoated, 956815

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-956815
$59.00

Harvey Tool square end mill, 4 flutes, center cutting. Solid carbide, uncoated. Manufacturer part number 956815.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.0150
Length of Cut (Decimal)
0.0450
Shank Diameter (Decimal)
0.1250
Number of Flutes
4
Overall Length (Decimal)
1.5000
Coating/Finish
Uncoated
Overall Length (Fractional)
1-1/2
Neck Diameter (Decimal)
0.0142
Neck Length (Decimal)
0.0330
Shank Diameter (Fractional)
1/8
Size System
Fractional
Center Cutting
Yes
Cutting Diameter (Fractional)
1/64
Reach (Decimal)
0.0780
Reach Multiple
5x
Cutting Diameter Tolerance (Decimal)
+0.0005/-0.0005
End Type
Square
LxD Ratio
3xD
Material
Solid Carbide
Reach (Fractional)
5/64
Harvey Tool Square End Mill: 1/64" Dia, .045" LOC, 1-1/2" OAL, 5/64" Reach, 4 Flute, Uncoated, 956815
$59.00
