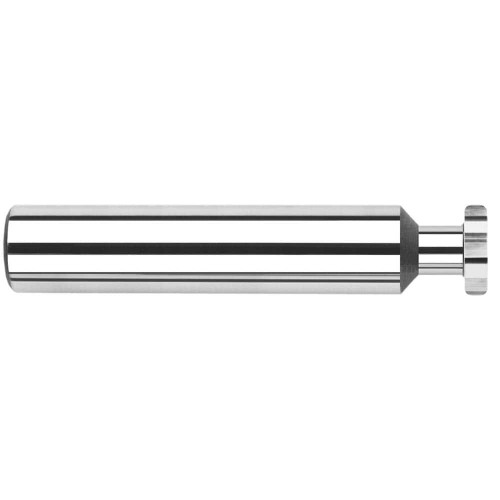

Harvey Tool Keyseat Cutter: 3/8" Dia, 1/8" Width, 8 Flute, Uncoated, 903360

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-903360
$149.00

Harvey Tool keyseat cutter, 8 flutes, corner radius end. Solid carbide, uncoated. Manufacturer part number 903360.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.3750
Shank Diameter (Decimal)
0.3750
Overall Length (Decimal)
2.5000
Coating/Finish
Uncoated
Overall Length (Fractional)
2-1/2
Type
II
Corner Radius (Decimal)
0.0150
Neck Diameter (Decimal)
0.1250
Number of Flutes
8
Neck Length (Decimal)
0.1870
Neck Length (Fractional)
3/16
Corner Radius (Fractional)
1/64
Shank Diameter (Fractional)
3/8
Neck Diameter (Fractional)
1/8
Cutting Diameter (Fractional)
3/8
Reach Multiple
0.5x
Cutter Width (Decimal)
0.1250
Cutter Width (Fractional)
1/8
Radial Depth of Cut (Decimal)
0.1150
Top Corner Radius
0.015
End Type
Corner Radius
Material
Solid Carbide
Size System
Fractional
