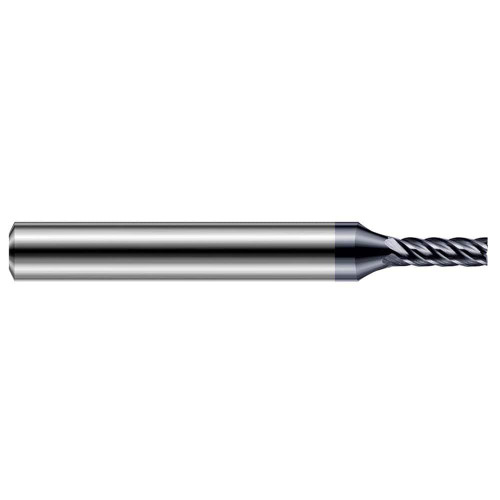

Harvey Tool Square End Mill: 7/64" Dia, .327" LOC, 2-1/2" OAL, 5 Flute, AlTiN Nano, 916002-C6

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-916002-C6
$103.80

Harvey Tool square end mill for hardened steel, 5 flutes, variable helix, center cutting. Solid carbide, AlTiN Nano coating. Manufacturer part number 916002-C6.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.1090
Length of Cut (Decimal)
0.3270
Shank Diameter (Decimal)
0.2500
Number of Flutes
5
Overall Length (Decimal)
2.5000
Coating/Finish
AlTiN Nano
Overall Length (Fractional)
2-1/2
Shank Diameter (Fractional)
1/4
Cutting Diameter (Fractional)
7/64
Size System
Fractional
Center Cutting
Yes
End Type
Square
LxD Ratio
3xD
Material
Solid Carbide
Maximum Workpiece Hardness
55 HRC
Secondary Workpiece Material
Stainless Steel, High-Temp Alloy
Shank Tolerance
h6
Variable Helix
Yes
Workpiece Material
Hardened Steel
Harvey Tool Square End Mill: 7/64" Dia, .327" LOC, 2-1/2" OAL, 5 Flute, AlTiN Nano, 916002-C6
$103.80
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
