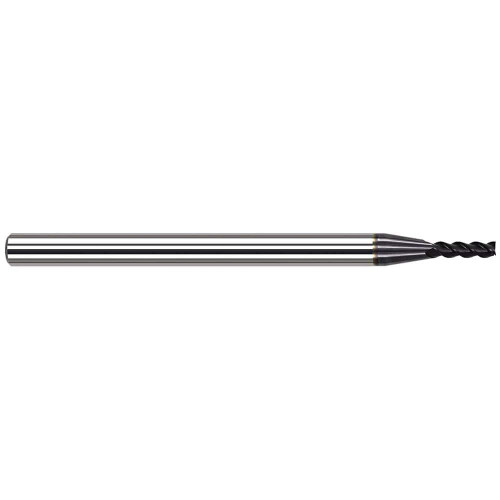

Harvey Tool Square End Mill: 7/64" Dia, .327" LOC, 1-1/2" OAL, 3 Flute, AlTiN Nano, 967102-C6

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-967102-C6
$46.00

Harvey Tool square end mill for high-temp alloys, 3 flutes, variable helix, center cutting. Solid carbide, AlTiN Nano coating. Manufacturer part number 967102-C6.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.1090
Length of Cut (Decimal)
0.3270
Shank Diameter (Decimal)
0.1250
Number of Flutes
3
Overall Length (Decimal)
1.5000
Coating/Finish
AlTiN Nano
Overall Length (Fractional)
1-1/2
Shank Diameter (Fractional)
1/8
Cutting Diameter (Fractional)
7/64
Size System
Fractional
Center Cutting
Yes
Cutting Diameter Tolerance (Decimal)
+0.0005/-0.0005
End Type
Square
LxD Ratio
3xD
Material
Solid Carbide
Maximum Workpiece Hardness
45 HRC
Secondary Workpiece Material
Steel, Stainless Steel
Shank Tolerance
h6
Variable Helix
Yes
Workpiece Material
High-Temp Alloy
Harvey Tool Square End Mill: 7/64" Dia, .327" LOC, 1-1/2" OAL, 3 Flute, AlTiN Nano, 967102-C6
$46.00
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
