HT - 931916-C3

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-931916-C3
$141.00

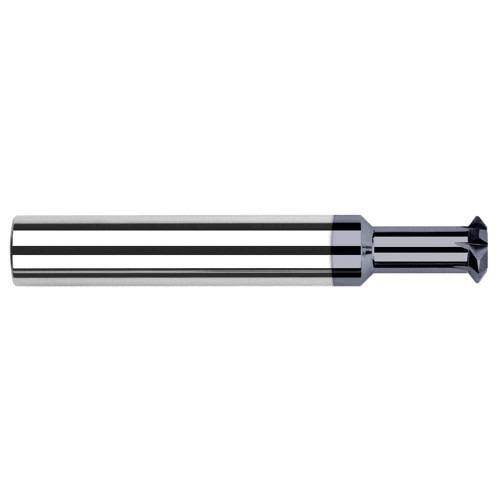

0.2500" (1/4) Cutter DIA x 0.0100" Radius x 0.1330" Width x 1.0000" (1) Neck Length Carbide Double Angle Shank Cutter, 4 Flutes, AlTiN Coated

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.2500
Shank Diameter (Decimal)
0.2500
Overall Length (Decimal)
3.0000
Coating/Finish
AlTiN
Neck Diameter (Decimal)
0.1250
Number of Flutes
4
Included Angle
90 degrees
Neck Length (Decimal)
1.0000
Neck Length (Fractional)
1
Shank Diameter (Fractional)
1/4
Neck Diameter (Fractional)
1/8
Cutting Diameter (Fractional)
1/4
Radius (Decimal)
0.0100
Angle per Side
45 degrees
Cutter Width (Decimal)
0.1330
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
End Type
Tip Radius
Material
Solid Carbide
Overall Length (Fractional)
3
HT - 931916-C3
$141.00
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
