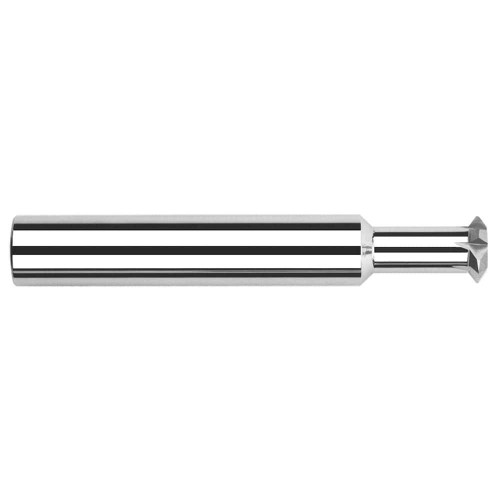

Harvey Tool Cutter: 1/4" Dia, 3" OAL, 4 Flute, Uncoated, 931916

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-931916
$129.40

Harvey Tool cutter, 4 flutes, tip radius end. Solid carbide, uncoated. Manufacturer part number 931916.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.2500
Shank Diameter (Decimal)
0.2500
Overall Length (Decimal)
3.0000
Coating/Finish
Uncoated
Neck Diameter (Decimal)
0.1250
Number of Flutes
4
Included Angle
90 degrees
Neck Length (Decimal)
1.0000
Neck Length (Fractional)
1
Shank Diameter (Fractional)
1/4
Neck Diameter (Fractional)
1/8
Cutting Diameter (Fractional)
1/4
Radius (Decimal)
0.0100
Angle per Side
45 degrees
Cutter Width (Decimal)
0.1330
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
End Type
Tip Radius
Material
Solid Carbide
Overall Length (Fractional)
3
Harvey Tool Cutter: 1/4" Dia, 3" OAL, 4 Flute, Uncoated, 931916
$129.40
