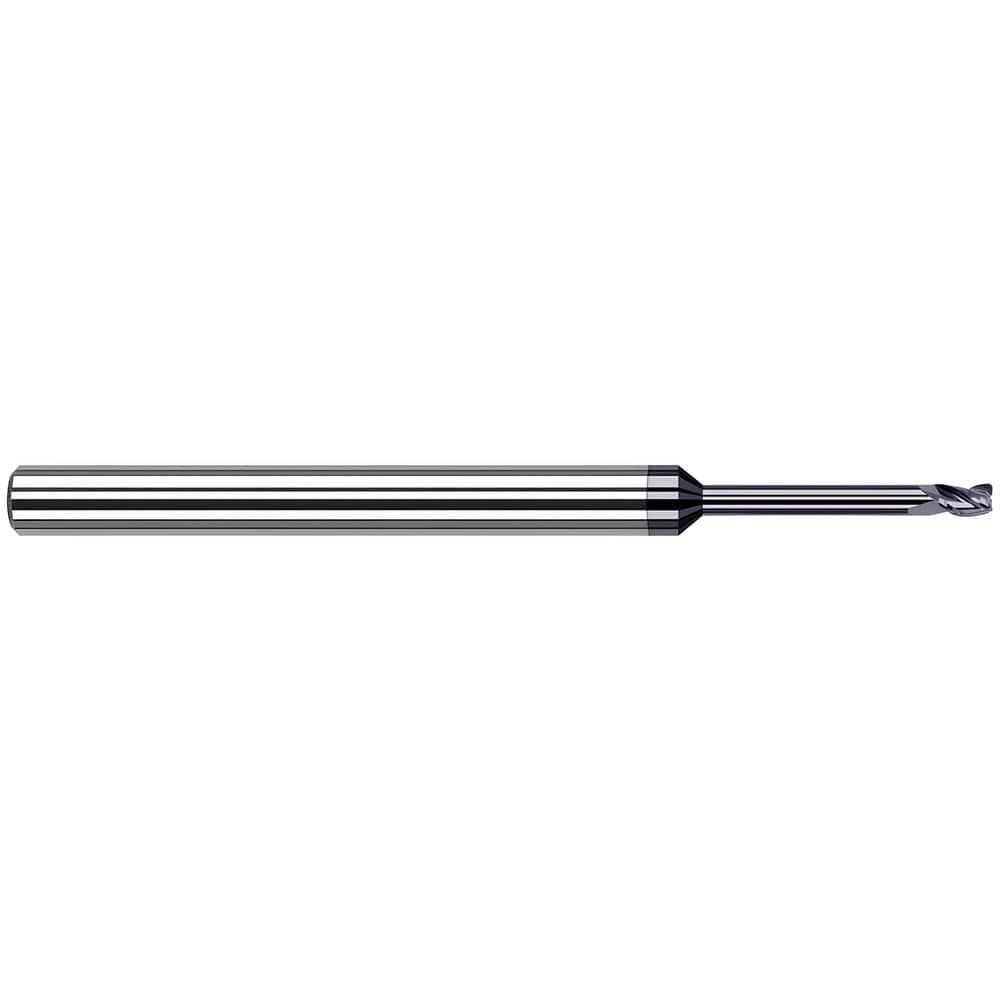

Harvey Tool Corner Radius End Mill: 1/64" Dia, .023" LOC, 1-1/2" OAL, .003" Corner Radius, .045" Reach, 3 Flute, AlTiN Nano, 947615-C6

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-947615-C6
$92.90

Harvey Tool corner radius end mill for high-temp alloys, 3 flutes, variable helix, center cutting. Solid carbide, AlTiN Nano coating. Manufacturer part number 947615-C6.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.0150
Length of Cut (Decimal)
0.0230
Shank Diameter (Decimal)
0.1250
Overall Length (Decimal)
1.5000
Coating/Finish
AlTiN Nano
Overall Length (Fractional)
1-1/2
Corner Radius (Decimal)
0.0030
Neck Diameter (Decimal)
0.0142
Number of Flutes
3
Shank Diameter (Fractional)
1/8
Size System
Fractional
Cutting Diameter (Fractional)
1/64
Center Cutting
Yes
Reach Multiple
3x
Cutting Diameter Tolerance (Decimal)
+0.0005/-0.0005
End Type
Corner Radius
LxD Ratio
1.5xD
Material
Solid Carbide
Maximum Workpiece Hardness
45 HRC
Reach (Decimal)
0.0450
Secondary Workpiece Material
Steel, Stainless Steel
Shank Tolerance
h6
Variable Helix
Yes
Workpiece Material
High-Temp Alloy
Harvey Tool Corner Radius End Mill: 1/64" Dia, .023" LOC, 1-1/2" OAL, .003" Corner Radius, .045" Reach, 3 Flute, AlTiN Nano, 947615-C6
$92.90
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
