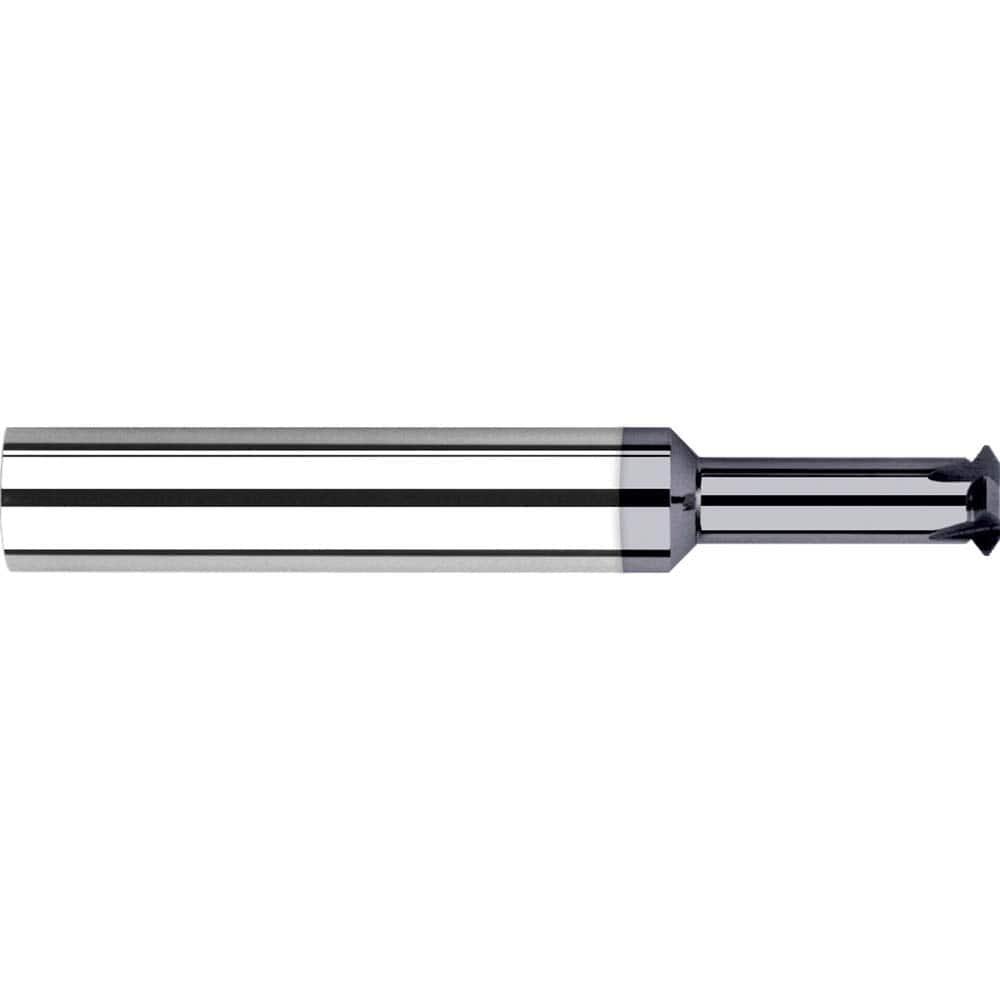

Harvey Tool Thread Mill: .240" Dia, .041" LOC, 2-1/2" OAL, 5 Flute, AlTiN Nano, 959555-C6

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-959555-C6
$174.20

Harvey Tool thread mill, 5 flutes. Solid carbide, AlTiN Nano coating. Manufacturer part number 959555-C6.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.2400
Length of Cut (Decimal)
0.0410
Shank Diameter (Decimal)
0.2500
Overall Length (Decimal)
2.5000
Coating/Finish
AlTiN Nano
Overall Length (Fractional)
2-1/2
Neck Diameter (Decimal)
0.1740
Number of Flutes
5
Included Angle
60 degrees
Shank Diameter (Fractional)
1/4
Thread Size
5/16
Angle per Side
30 degrees
Tip Flat (Decimal)
0.0036
Max Depth of Thread (Decimal)
1.0000
Max Depth of Thread (Fractional)
1
Material
Solid Carbide
Maximum Workpiece Hardness
68 HRC
Shank Tolerance
h6
Harvey Tool Thread Mill: .240" Dia, .041" LOC, 2-1/2" OAL, 5 Flute, AlTiN Nano, 959555-C6
$174.20
