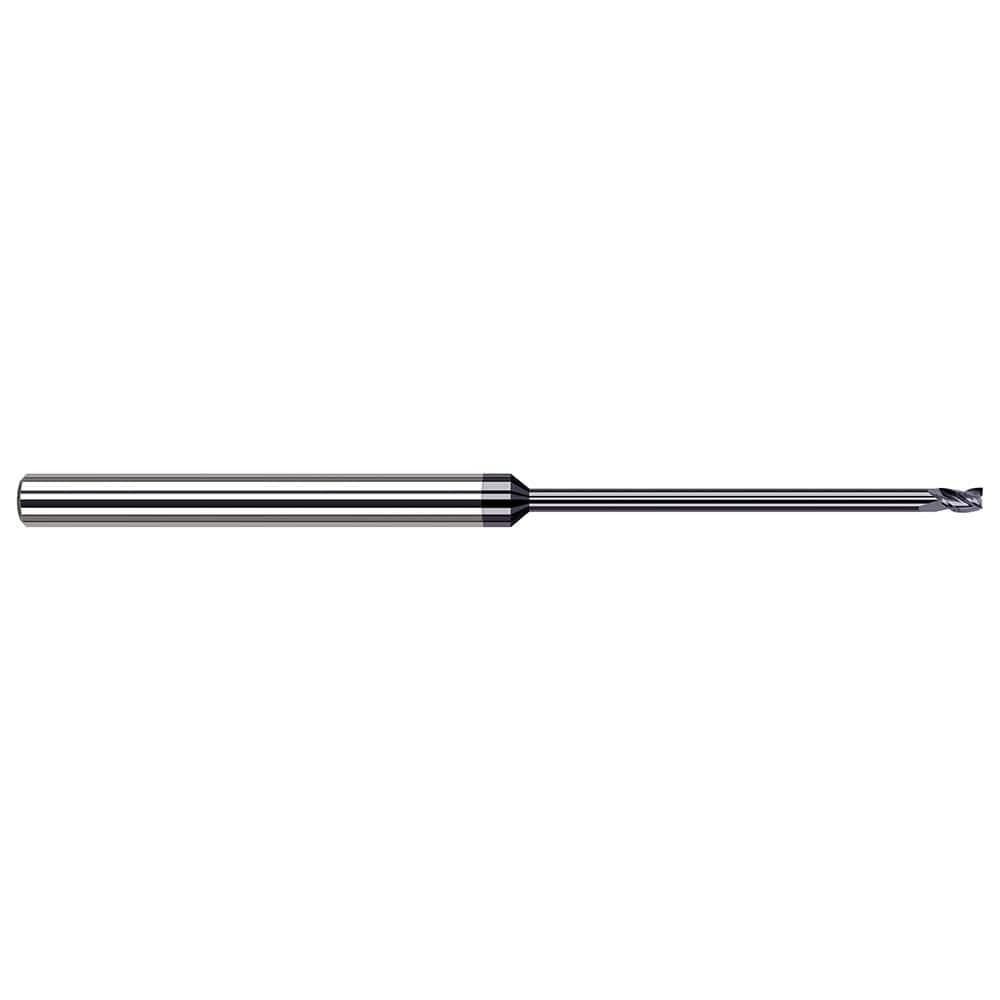

Harvey Tool Square End Mill: 3/16" Dia, 9/32" LOC, 6" OAL, 3-3/8" Reach, 3 Flute, Uncoated, 977412

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-977412
$103.50

Harvey Tool square end mill, 3 flutes, center cutting. Solid carbide, uncoated. Manufacturer part number 977412.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.1875
Length of Cut (Decimal)
0.2810
Shank Diameter (Decimal)
0.1875
Number of Flutes
3
Overall Length (Decimal)
6.0000
Coating/Finish
Uncoated
Length of Cut (Fractional)
9/32
Neck Diameter (Decimal)
0.1830
Shank Diameter (Fractional)
3/16
Overall Length (Fractional)
6
Size System
Fractional
Cutting Diameter (Fractional)
3/16
Center Cutting
Yes
Reach Multiple
18x
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
End Type
Square
LxD Ratio
1.5xD
Material
Solid Carbide
Reach (Decimal)
3.3750
Reach (Fractional)
3-3/8
Harvey Tool Square End Mill: 3/16" Dia, 9/32" LOC, 6" OAL, 3-3/8" Reach, 3 Flute, Uncoated, 977412
$103.50
