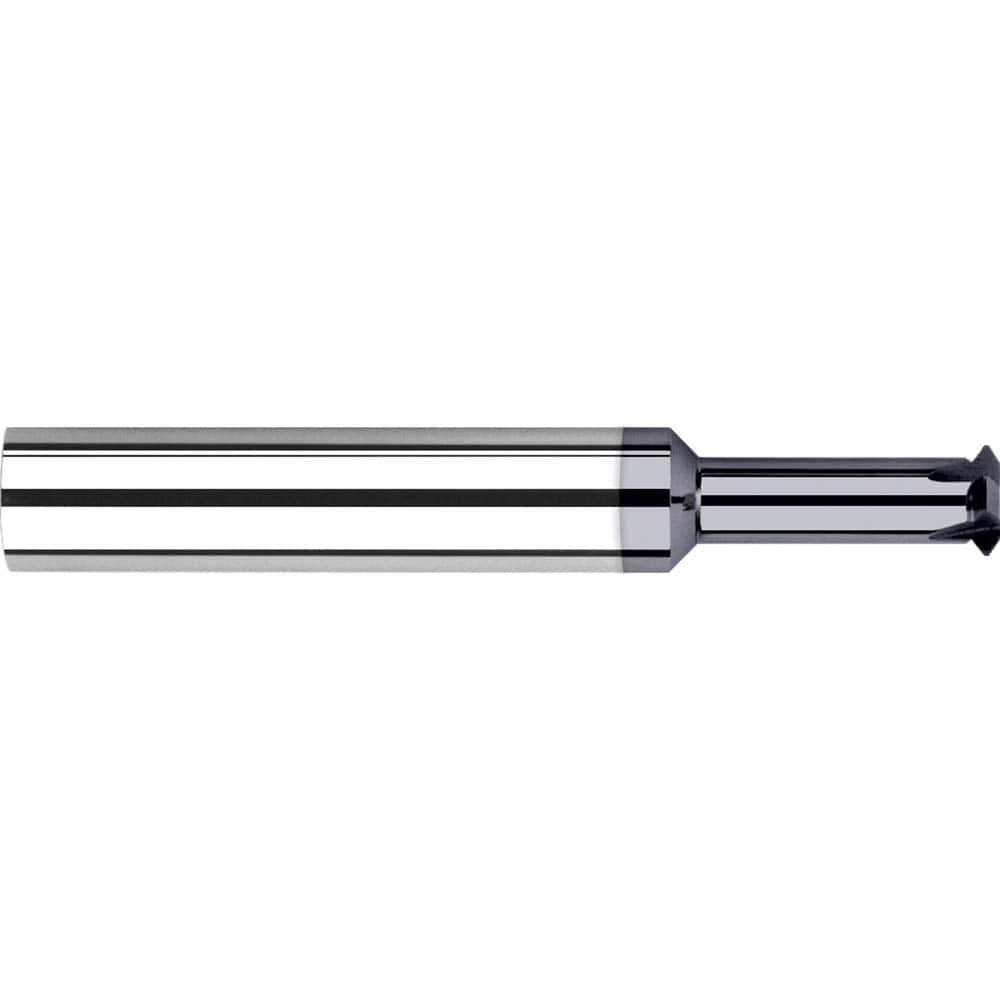

Harvey Tool Thread Mill: .180" Dia, .036" LOC, 2-1/2" OAL, 5 Flute, AlTiN Nano, 986650-C6

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-986650-C6
$157.90

Harvey Tool thread mill, 5 flutes. Solid carbide, AlTiN Nano coating. Manufacturer part number 986650-C6.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.1800
Length of Cut (Decimal)
0.0360
Shank Diameter (Decimal)
0.2500
Overall Length (Decimal)
2.5000
Coating/Finish
AlTiN Nano
Overall Length (Fractional)
2-1/2
Neck Diameter (Decimal)
0.1220
Number of Flutes
5
Included Angle
60 degrees
Shank Diameter (Fractional)
1/4
Thread Size
1/4
Angle per Side
30 degrees
Tip Flat (Decimal)
0.0030
Max Depth of Thread (Decimal)
0.5000
Max Depth of Thread (Fractional)
1/2
Material
Solid Carbide
Maximum Workpiece Hardness
68 HRC
Shank Tolerance
h6
