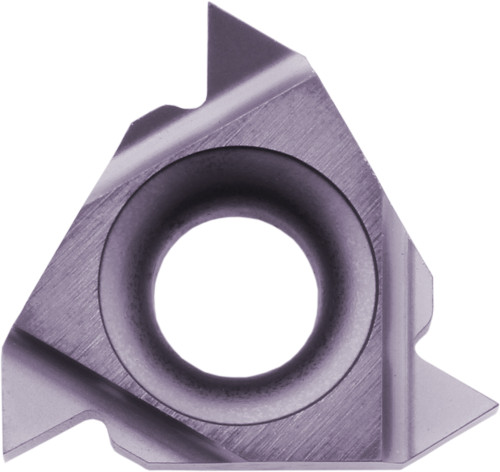

Kyocera 11 IRA60 PR1115 Grade PVD Carbide, Indexable Threading Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TJY18234
$57.53
Kyocera 11 IRA60 PR1115 Grade PVD Carbide, Internal, 60 Degree Partial Profile, Right-Hand Threading Insert for Metric (M), Unified (UN) Threads

Specifications

Series
LDT
Unit of Measure
Metric
Cutting Direction
Right
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Carbon/Alloy Steel|(M) Stainless Steel
Grade
PR1115
Thickness
3.18 mm
Style
11IR
Application
Internal Threading
Thread Standard
Metric (M)|Unified (UN)
Insert Holding Method
Screw or Clamp
Thread Type
Internal
Size
11
Old Material Number
8829836
ANSI Part Number
11IRA60PR1115
ISO Part Number
11IRA60
Corner Radius (Metric)
0.03
Number of Cutting Edges
3
Corner Radius (Decimal)
0.001
Thickness (Fractional)
1/8
Usage Classification
Continuous
Inscribed Circle (Fractional)
1/4
Inscribed Circle Diameter mm
6.35 mm
Thread Profile Type
60 Degree Partial Profile
Thread Pitch (TPI)
UN, UNF: 48-16
Thread Pitch (mm)
M: 0.50-1.50
Pack quantity
5
Kyocera 11 IRA60 PR1115 Grade PVD Carbide, Indexable Threading Insert
$57.53
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
