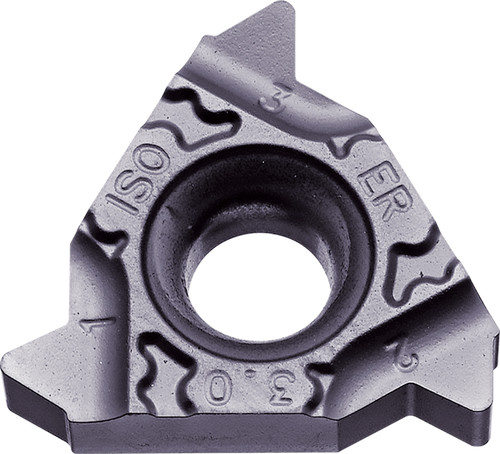

Kyocera Threading Insert 16ER200ISOTF PR1115: TJY18413

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TJY18413
$31.28

Kyocera Threading Insert 16ER200ISOTF PR1115, manufacturer part number TJY18413.

Specifications: IC Size: 9.525 mm (3/8 in); Insert Thickness: 3.68 mm (0.1450 in); Corner Radius: 0.25 mm (0.0100 in); Insert Holding Method: Screw or Clamp; Thread Type: External; Old Material Number: 8828450; Number of Cutting Edges: 3; Usage Classification: Continuous; Thread Profile Type: 60 Degree Full Profile; Thread Pitch (mm): M: 2.00; Insert Size: 16; Hand Direction: Right; Insert Style: 16ER; ANSI Designation: 16ER200ISOTFPR1115; Chip Breaker Type: TF; ISO Designation: 16ER200ISO-TF; Machining Operations: External Threading; Insert Grade: PR1115; Workpiece Material: Steel, Stainless Steel; Thread Standard: M; Insert Shape: Triangle; Coating Process: PVD.

Material: Carbide. Coating/Finish: TiAlN. Series: LDT. Unit of measure: Metric.

Specifications

Series
LDT
Unit of Measure
Metric
Hand Direction
Right
Material
Carbide
Coating/Finish
TiAlN
IC Size (Fractional)
3/8
IC Size (Metric)
9.525
Insert Shape
Triangle
Insert Style
16ER
Insert Thickness (Metric)
3.68
Thread Standard
M
Insert Holding Method
Screw or Clamp
Thread Type
External
Insert Size
16
Old Material Number
8828450
Machining Operations
External Threading
Insert Grade
PR1115
Corner Radius (Metric)
0.25
Number of Cutting Edges
3
Corner Radius (Decimal)
0.0100
ANSI Designation
16ER200ISOTFPR1115
ISO Designation
16ER200ISO-TF
Usage Classification
Continuous
Workpiece Material
Steel, Stainless Steel
Chip Breaker Type
TF
Thread Profile Type
60 Degree Full Profile
Thread Pitch (mm)
M: 2.00
Pack quantity
5
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/JCT-Series_Coolant-Through_Holders.pdf
Coating Process
PVD
Insert Thickness (Decimal)
0.1450
Kyocera Threading Insert 16ER200ISOTF PR1115: TJY18413
$31.28
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
