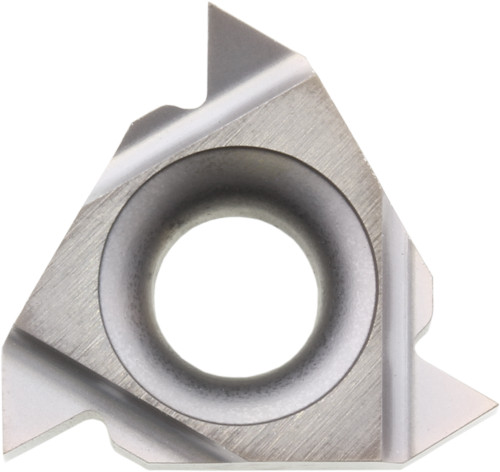

Kyocera Threading Insert 16IRA60 GW15: TWF18236

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TWF18236
$55.76

Kyocera Threading Insert 16IRA60 GW15, manufacturer part number TWF18236.

Specifications: IC Size: 3/8 in (9.525 mm); Insert Thickness: 0.1450 in (3.68 mm); Corner Radius: 0.0010 in (0.03 mm); Insert Holding Method: Screw or Clamp; Thread Type: Internal; Old Material Number: 8827891; Number of Cutting Edges: 3; Usage Classification: Continuous; Thread Profile Type: 60 Degree Partial Profile; Thread Pitch (TPI): UN, UNF: 48-16; Thread Pitch (mm): M: 0.50-1.50; Insert Size: 16; Hand Direction: Right; Insert Style: 16IR; ANSI Designation: 16IRA60GW15; ISO Designation: 16IRA60; Machining Operations: Internal Threading; Insert Grade: GW15; Workpiece Material: Cast Iron; Thread Standard: M, UN; Insert Shape: Triangle.

Material: Carbide. Coating/Finish: Uncoated. Series: LDT. Unit of measure: Inch.

Specifications

Series
LDT
Unit of Measure
Inch
Hand Direction
Right
Material
Carbide
Coating/Finish
Uncoated
IC Size (Fractional)
3/8
IC Size (Metric)
9.525
Insert Shape
Triangle
Insert Style
16IR
Insert Thickness (Metric)
3.68
Thread Standard
M, UN
Insert Holding Method
Screw or Clamp
Thread Type
Internal
Insert Size
16
Old Material Number
8827891
Machining Operations
Internal Threading
Insert Grade
GW15
Corner Radius (Metric)
0.03
Number of Cutting Edges
3
Corner Radius (Decimal)
0.0010
ANSI Designation
16IRA60GW15
Usage Classification
Continuous
Workpiece Material
Cast Iron
ISO Designation
16IRA60
Thread Profile Type
60 Degree Partial Profile
Thread Pitch (TPI)
UN, UNF: 48-16
Thread Pitch (mm)
M: 0.50-1.50
Pack quantity
5
Insert Thickness (Decimal)
0.1450
