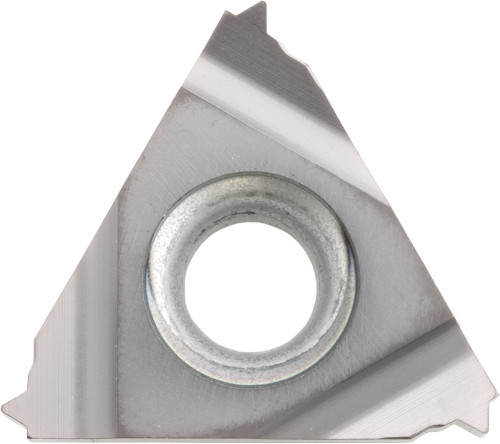

Kyocera 16ER 150ISO TC60 Grade Uncoated Cermet, Indexable Threading Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TSB01010
$46.75
Kyocera 16ER 150ISO TC60 Grade Uncoated Cermet, External, 60 Degree Full Profile, Right-Hand Threading Insert for Metric (M) Threads

Specifications

Series
LDT
Unit of Measure
Metric
Cutting Direction
Right
Material
Cermet
Coating/Finish
Uncoated
Primary Workpiece Material
(P) Carbon/Alloy Steel
Grade
TC60
Thickness
3.68 mm
Style
16ER
Application
External Threading
Thread Standard
Metric (M)
Insert Holding Method
Screw or Clamp
Thread Type
External
Size
16
Old Material Number
8803377
ANSI Part Number
16ER150ISOTC60
ISO Part Number
16ER150ISO
Corner Radius (Metric)
0.19
Number of Cutting Edges
3
Corner Radius (Decimal)
0.01
Thickness (Decimal)
0.15
Usage Classification
Continuous
Inscribed Circle (Fractional)
3/8
Inscribed Circle Diameter mm
9.53 mm
Thread Profile Type
60 Degree Full Profile
Thread Pitch (mm)
M: 1.50
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/JCT-Series_Coolant-Through_Holders.pdf
