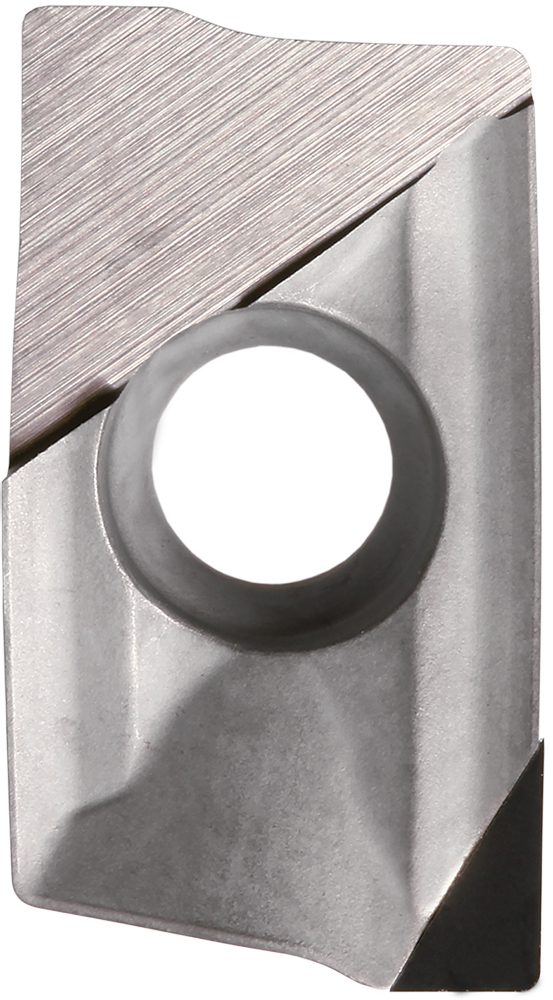

Kyocera BDGT 11T302FR KPD230 Grade PCD, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TBD00274
$207.82
Kyocera BDGT 11T302FR KPD230 Grade PCD, Parallelogram, Negative Rake Angle, Right-Hand Milling insert for Finishing in (N) Non-Ferrous Materials and (S) Titanium Alloy

Specifications

Series
MEC
Unit of Measure
Metric
Cutting Direction
Right
Material
PCD
Coating/Finish
Uncoated
Primary Workpiece Material
(N) Non-Ferrous Materials
Corner Radius
0.20 mm
Grade
KPD230
Thickness
3.80 mm
Style
BDGT
Application
Facing, Helical Milling, Shouldering, Slotting
Thickness (Decimal)
0.15
Shape
Parallelogram
Insert Holding Method
Screw
Insert Length (Decimal)
0.45
Insert Length (Metric)
11.50
Old Material Number
8859286
ANSI Part Number
BDGT11T302FRKPD230
ISO Part Number
BDGT11T302FR
Rake
Negative
Number of Cutting Edges
1
Insert Size
11T302
Chipbreaker
FR
Cutting Range
Finishing
Corner Radius (Decimal)
0.01
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MEC-Series_High-Efficiency_Milling.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
