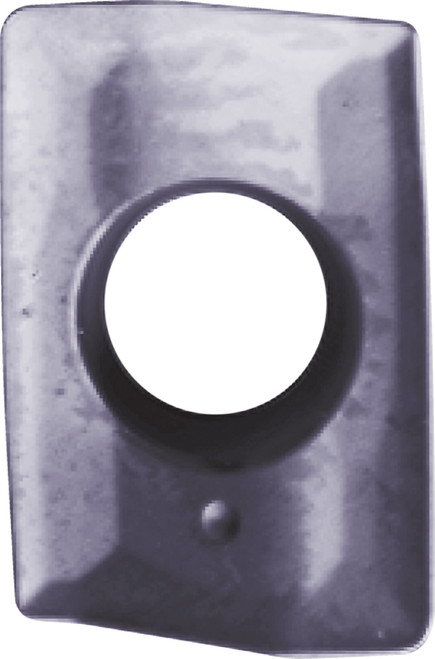

Kyocera BDMT 070302ERJT PR1810 Grade PVD Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLS00037
$25.42
Kyocera BDMT 070302ERJT PR1810 Grade PVD Carbide, Parallelogram, Positive Rake Angle, Right-Hand Milling Insert for Roughing in (K) Gray Cast Iron, (K) Nodular Cast Iron

Specifications

Series
MECX
Unit of Measure
Metric
Cutting Direction
Right
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(K) Gray Cast Iron|(K) Nodular Cast Iron
Corner Radius
0.20 mm
Grade
PR1810
Thickness
2.60 mm
Style
BDMT
Application
Facing, Helical Milling, Shouldering, Slotting
Thickness (Decimal)
0.10
Shape
Parallelogram
Insert Holding Method
Screw
ANSI Part Number
BDMT070302ERJTPR1810
ISO Part Number
BDMT070302ER-JT
Rake
Positive
Number of Cutting Edges
2
Insert Size
070302
Chipbreaker
ER-JT
Cutting Range
Roughing
Corner Radius (Decimal)
0.01
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MEC-Series_High-Efficiency_Milling.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PR18-Series_Milling_Grades.pdf
