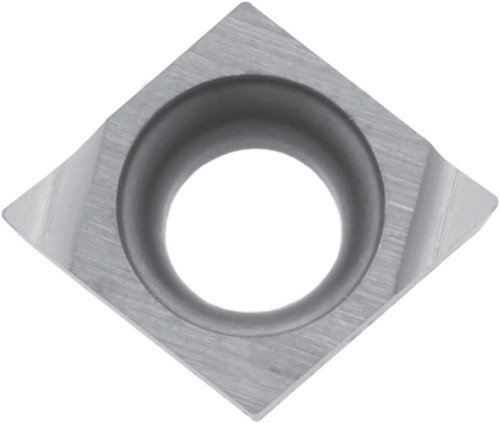

Kyocera Turning Insert CCET141105LFSF TN60: TSJ07129

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TSJ07129
$29.00

Kyocera ISOI turning insert for steel, 0.1690 in (4.30 mm) IC, 80 degree diamond shape, positive rake, 2 cutting edges, finishing cutting range, screw or clamp insert holding, left hand. Cermet, uncoated. Manufacturer part number TSJ07129.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Left
Material
Cermet
Coating/Finish
Uncoated
Machining Operations
Boring, External Turning, Facing, Internal Facing, Sub-Spindle
Corner Radius (Decimal)
0.0080
Included Angle
80
ANSI Designation
CCET141105LFSFTN60
Insert Style
CCET
Insert Grade
TN60
Insert Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
141105
Workpiece Material
Steel
IC Size (Decimal)
0.1690
Rake
Positive
Insert Thickness (Metric)
1.80
Corner Radius (Metric)
0.20
Number of Cutting Edges
2
Insert Thickness (Decimal)
0.0710
ISO Designation
CCET040102L-FSF
Cutting Range
Finishing
Usage Classification
Continuous
IC Size (Metric)
4.30
Chip Breaker Type
FSF
Pack quantity
10
