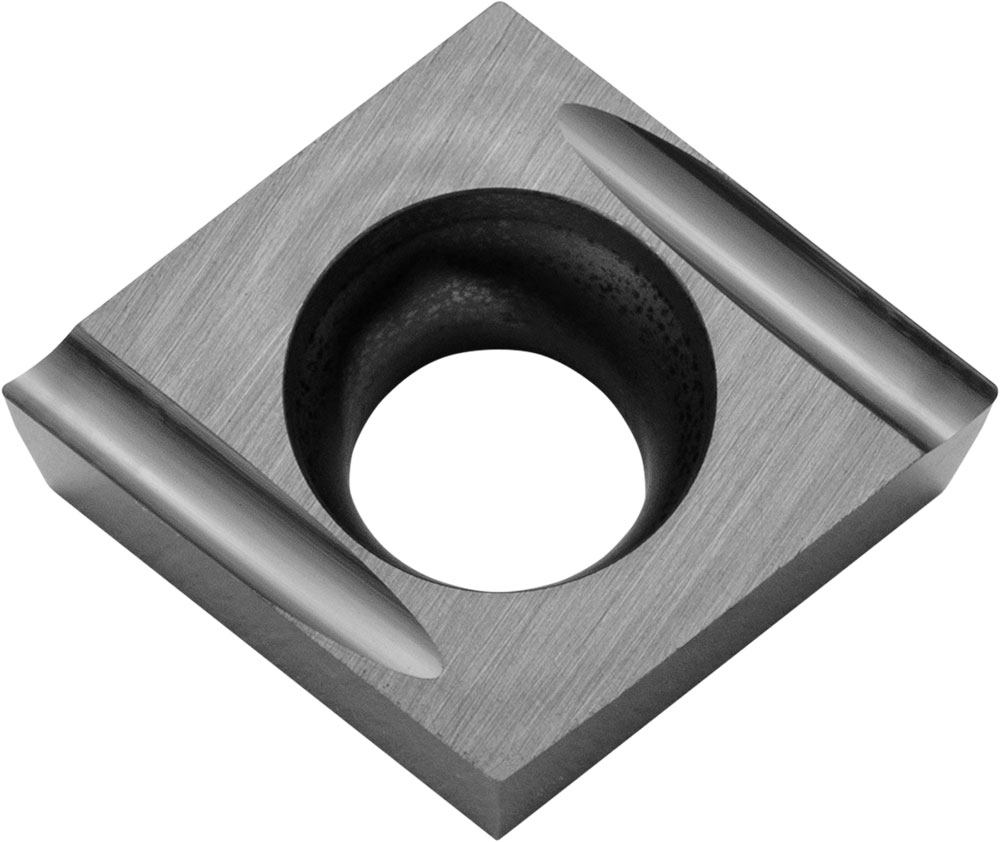

Kyocera CCGT 32502FRU TN60 Grade Uncoated Cermet, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TSJ00160
$24.00
Kyocera CCGT 32502FRU TN60 Grade Uncoated Cermet, 7 Degree, Diamond, Positive Rake Angle, Right-Hand Turning Insert for Continuous and Finishing in (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Right-Hand
Material
Cermet
Coating/Finish
Uncoated
Primary Workpiece Material
(P) Carbon/Alloy Steel
Included Angle
80 degrees
Thickness
5/32 Inch
Style
CCGT
Application
Boring, External Turning, Facing, Internal Facing, Sub-Spindle
Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
32502
Old Material Number
8807853
ANSI Part Number
CCGT32502FRUTN60
ISO Part Number
CCGT09T301FR-U
Rake
Positive
Material Group / Grade
TN60
Corner Radius (Metric)
0.10
Number of Cutting Edges
2
Thickness (Metric)
3.97
Chipbreaker
U
Cutting Range
Finishing
Usage Classification
Continuous
Insert Included Angle
80 degrees
Inscribed Circle (Metric)
9.53
Inscribed Circle
3/8 Inch
Pack quantity
10
Kyocera CCGT 32502FRU TN60 Grade Uncoated Cermet, Indexable Turning Insert
$24.00
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
