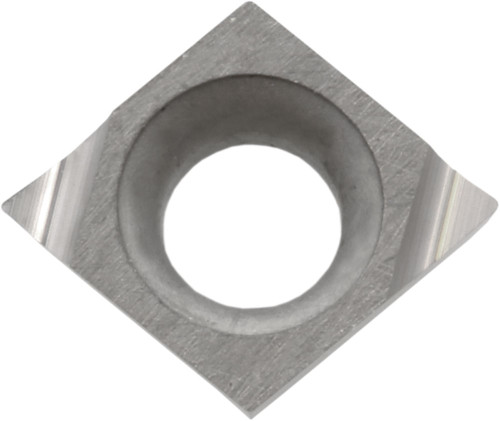

Kyocera CCGT 141102LF TN60 Grade Uncoated Cermet, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TSJ00117
$26.88
Kyocera CCGT 141102LF TN60 Grade Uncoated Cermet, 7 Degree, Diamond, Positive Rake Angle, Left-Hand Turning Insert for Continuous and Medium in (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Imperial
Cutting Direction
Left
Material
Cermet
Coating/Finish
Uncoated
Primary Workpiece Material
(P) Carbon/Alloy Steel
Corner Radius
0.004 Inch
Included Angle
80 degrees
Thickness
0.07 Inch
Style
CCGT
Application
Boring, External Turning, Facing, Internal Facing, Sub-Spindle
Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
141102
Old Material Number
8807835
ANSI Part Number
CCGT141102LFTN60
ISO Part Number
CCGT040101L-F
Rake
Positive
Material Group / Grade
TN60
Corner Radius (Metric)
0.10
Number of Cutting Edges
2
Thickness (Metric)
1.80
Chipbreaker
F
Cutting Range
Medium
Usage Classification
Continuous
Insert Included Angle
80 degrees
Inscribed Circle (Metric)
4.30
Inscribed Circle
0.17 Inch
Pack quantity
10
Kyocera CCGT 141102LF TN60 Grade Uncoated Cermet, Indexable Turning Insert
$26.88
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
